Nellcor PM100N Bedside SpO₂ Pulse Oximeter
Flexible. Compact. Intuitive.

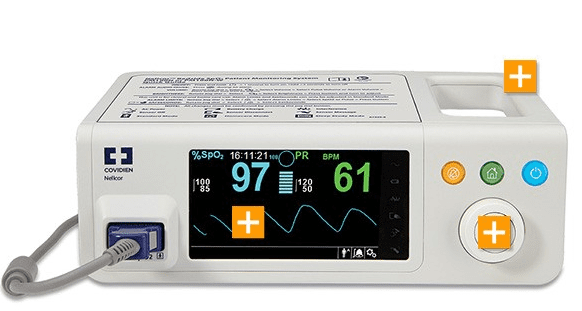

The Nellcor Bedside SpO₂ Patient Monitoring System, PM100N, provides at-a-glance access to real-time patient respiratory status information including continuous SpO₂ and pulse rate monitoring and trending data. The compact monitor can be placed at the patient's bedside or easily transported using the convenient, built-in handle1.
With home care and sleep study modes, the PM100N has functionality for non-hospital settings. The system has password-protection to ensure safe utilization by non-clinical users, and the ability to conveniently download data for further data analysis.
The monitor incorporates the latest Nellcor digital signal processing technology for accurate, reliable readings even during low perfusion, motion, and other forms of signal interference, as well as SatSeconds™ alarm management to help distinguish meaningful alarms from transient events.
▣ Displays plethysmographic waveforms, pulse amplitude and real-time SpO₂ and pulse rate data
▣ 96-hour trend memory with data captured every four seconds for quick review of changes in patient status
▣ Includes SatSeconds alarm management, a clinician-controlled feature that has been proven to reduce nuisance alarms
▣ Password protected homecare and sleep study modes
▣ Both homecare and sleep study modes meet IEC 60601-1-11 for home health equipment to promote the safe and effective use of the monitor by lay users in the non-hospital setting. Optional homecare support package to ease patient and caregiver burden
| Measurement Range: | |
| SpO₂ | 1% to 100% |
| Pulse rate: | 20 to 250 beats per minute (bpm) |
| Pulse amplitude: | 0.03% to 20% |
| Saturation: | |
| Adult: | 70% to 100% ± 2 digits |
| Adult and neonate low sat: | 60% to 80% ± 3 digits |
| Neonate: | 70% to 100% ± 2 digits |
| Low perfusion: | 70% to 100% ± 2 digits |
| Adult and neonate with motion: | 70% to 100% ± 4 digits |
| Pulse rate: | |
| Adult and neonate: | 20 to 250 bpm ± 3 digits |
| Low perfusion: | 20 to 250 bpm ± 3 digits |
| Adult and neonate with motion: | 20 to 250 bpm ± 5 digits |
| Instrument | |
| Power requirements: | 100 to 240 VAC, 50/60 Hz, 45 VA |
| Fuse rating: | Fast‑acting 2 A 32VAC/DC, |
| Fast‑acting 500 mA 32VAC/50DC |
| Battery: | |
| Type | Lithium ion |
| Battery capacity: | Minimum of five hours using new, fully charged battery with no alarms; optional 10-hour battery |
| Operating Temperature: | |
| Instrument: | 5 °C to 40 °C (41 °F to 104 °F) |
| Transport/Storage Temperature (in shipping carton): | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operating Humidity: |
| 15% to 93% noncondensing |
| Operating Altitude: |
| -170 m to 4877 m (-557 ft to 16,000 ft) |
| Weight: | 1.5 kg (3 lbs) |
| Size: | 82 H x 255 W x 155 D (mm), (3.23 H x 10.04 W x 6.10 D (in) |
| Standards Compliance: |
| • IEC 60601-1:2005+A1:2012, EN 60601-1:2006/AC:2010 |
| • IEC 60601-1:1998 + A1:1991 +A2:1995, EN 60601-1:1990 +A11:1993 +A12:1993 +A13:1996 |
| • IEC 60601-1-2:2007, EN60601-1-2:2007 |
| • IEC 60601-1-6:2010, EN 60601-1-6:2010 +A1:2013 |
| • IEC 60601-1-8:2006, EN 60601-1-8:2006 +A1:2012 |
| • IEC 60601-1-11:2010, EN 60601-1-11:2010 |
| • ISO 9919:2005, EN ISO 9919:2009 |
| • ISO 80601-2-61:2011, EN ISO 80601-2-61:2011 |
| • CAN/CSA C22.2 No. 601.1 M90 |
| • UL 60601-1: 1st edition |
| • 802.11 B/G/N WLAN connectivity |
| • Type of protection against electric shock | Class 2 (internally powered) |
| • Degree of protection against electric shock | Type BF – Applied part |
| • Mode of operation | Continuous |
| • Electromagnetic compatibility | IEC 60601-1-2:2007 |
| • Liquid ingress | IP 22 |
| • Trend data download via wired or USB for archiving or data analysis |
| • Pulse amplitude indicator (eight segments) | |
| • Visual indicators | Pulse search, audible alarms silenced or off, interference indicator, battery charging, and SatSeconds alarm management clock, pleth wave form |
| • SatSeconds alarm management |
| • Audible and Visual alarms for high/low saturation and pulse rate, low battery, sensor off, and sensor disconnect |
| • Categories | Patient status and system status |
| • Priorities | Low, medium and high |
| • Notification | Audible and visual |
| • Setting | Default, institutional and last setting |
| • Alarm system delay | <10 s |
| • 10 and 15 hour battery |
| • Adapter plate |
| • GCX wall mount arm and channel |
| • GCX roll stand |
| • Carrying case |
| • Standard – Hospital, hospital‑type facilities, and intra‑hospital transport. |
| • Homecare – Simplified monitoring for use in the home by caregivers |
| • Sleep Study – Muted audible and visual queues to aid sleep studies |
| • Supports wired and USB trend data export to an external personal computer for archiving or data analysis |
| • Nurse call capability |
| The Nellcor Bedside SpO₂ Patient Monitoring System meets medical electrical equipment standards, is RoHs compliant |
