Vacutron Suction Regulators by Chemetron

Chemetron Vacutron Suction Regulators
Click Image to Enlarge
Item #:

Request for more information:




* Indicates required field!

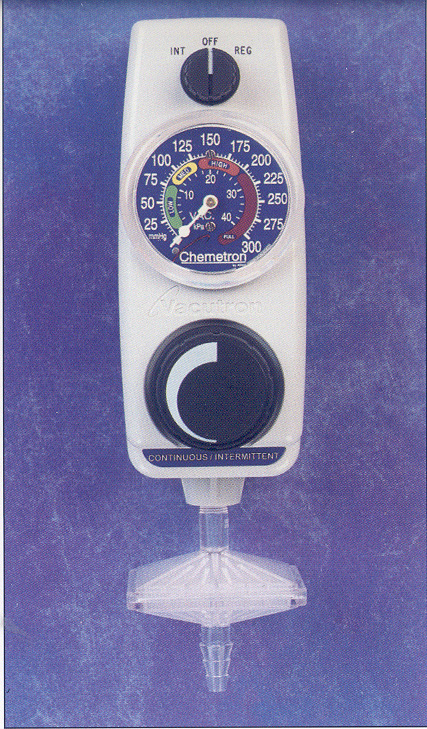

Vacutron Suction Regulators by Chemetron: Continuous/Intermittent, Surgical, High Vacuum Inset: Low Vacuum Model, Pediatric Continuous/Intermittent Inset: Pediatric Continuous Model, Continuous, Intermittent.

Smaller in size, but big on benefits. It offers advantages that include:

• Slimmer line saves space, yet model is more durable than ever.

• Maintenance is easy. Clean flushing with cold sterilant.

• Weight-bearing brass post prevents case from cracking. Various inlet and outlet fittings insure compatibility with existing fixtures in any medical facility.

• Easy access ON/OFF Soft-Touch knob gives full-line capability on the surgical model.

• Color-coded, glow-in-the-dark gauge face provides easy readability under any conditions. Gauge is secured by a screw for durability.

• 0-300 mm Hg is achieved easily with minimal turning of the knob. Vacuum-limiting valve on the continuous model limits vacuum at approximately 320 mmHg to prevent potential tissue damage.

• New larger Soft-Touch knob for quick, fumble-free action to regulate vacuum level as specified for each model. Exposed bottom allows easy thumb-wheel adjustment. Over sized knob for easy operation.

This CONTINUOUS "General Patient" Suction Regulator is designed to give accurate, precise control of vacuum up to 200mm HG and full vacuum of 300mm hg from a centrally piped source. Vacuum levels are indicated on a color-coded, glow in the dark 2" gauge. New over-sized knob for easy adjustment with just one full turn of the knob. Operational vacuum source range 12-30Hg. Unit can be cleaned by flushing with cold sterilant. Connects to most medical Gas/ Vac wall outlets with a choice of optional adapter fittings including DISS-F, Chemetron Male Quick-connect, Ohmeda Male Quick-connect, Ό NPT Female, Oxyquip, & Puritan.

Features • New Soft-Touch knobs

• Can be sterilized internally with cold disinfectant

• Two-year warranty; extended warranty available

• Minimum maintenance

• Accurate, precise vacuum control

• Impact-resistant internal components

• Wide variety of inlet and outlet fittings

• Stable settings, even with fluctuations in source vacuum

Chemetron Vacutron Suction Regulators

  • Accessories:
  • Model 20-08-0004 1500cc plastic bottle / DISS cap- 48/case
  • Model 20-08-0004 1500cc plastic bottle / stem cap- 48/case
  • Model 20-02-0150 Plastic bottle ring holder Pkg/12
  • Model 22-11-0006 Aluminum Wall bracket for ring holders
  • Chemetron Vacutron Suction Regulators Plastic bottle ring holder
  • Allied Hydrophobic/bacteria filters prevent fluids and other contaminants from entering and damaging suction pumps. Superb filtering efficiency provides 99.97% D.O.P. retention (.3 micron particle size). Available with 1/8 NPT pipe thread on one end for connection to vacuum regulator and Ό”hosebarb for connection to vacuum tubing; or hosebarb on both ends.
  • Item 01-90-3100 1 pack/ 3 filters
  • Item 01-90-3928 1 pack/ 3 filters (Hosebarb x Hosebarb)
  • Allied Hydrophobic/bacteria filters
