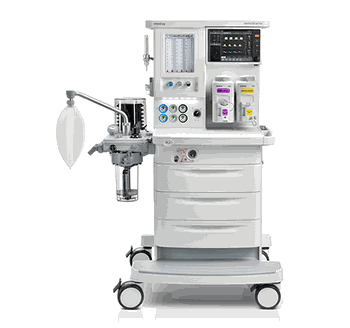

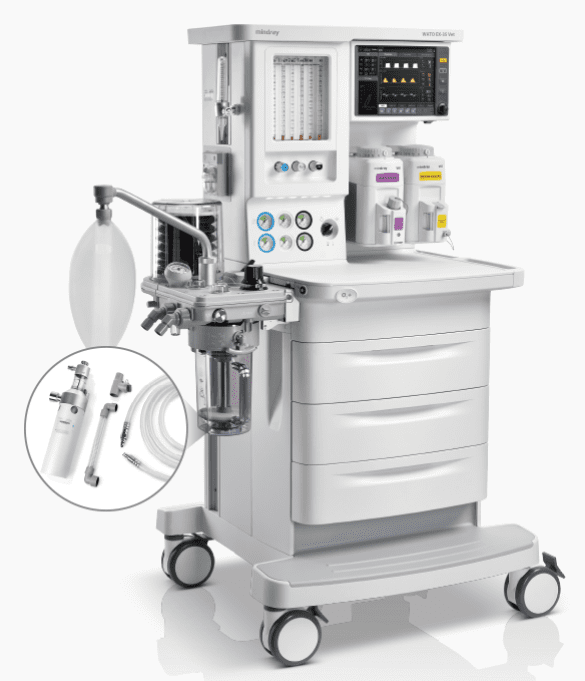

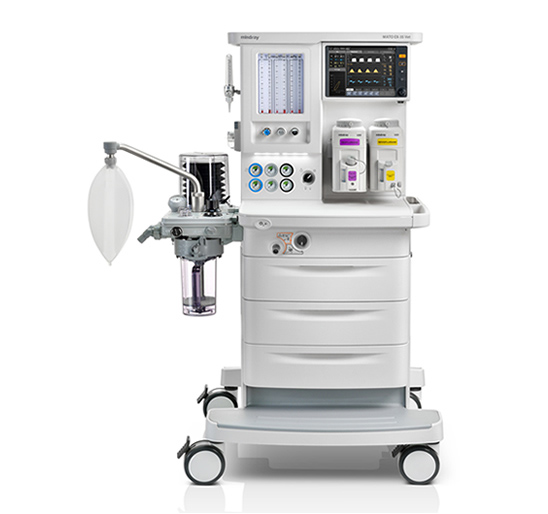

Mindray WATO EX-35Vet Veterinary Anesthesia Machine

Mindray WATO EX-35Vet Veterinary Anesthesia Machine
Mindray WATO EX-35Vet Veterinary Anesthesia Machine
Mindray WATO EX-35Vet Veterinary Anesthesia Machine
Mindray WATO EX-35Vet Veterinary Anesthesia Machine
Click Image to Enlarge
Item #:

Request for more information:




* Indicates required field!


Enhanced Safety
Employing the latest technologies, the WATO EX-35Vet supports an extensive range of features and functionality, ensuring all anesthetic procedures are delivered safely, efficiently, and effectively.

Precise Veterinary Ventilator
WATO EX-35Vet offers a full range of controlled and supportive modes of ventilation; with dynamic tidal volume compensation, tidal volumes can reach as low as 5 mL. Intelligent ventilation mode PCV-VG* combines the advantages of pressure-controlled ventilation with the volume guarantee of volume-controlled ventilation, avoiding lung injury.

Extensive Physiological Monitoring
With WATO EX-35Vet, important ventilation parameters are displayed prominently, allowing anesthetists to ensure their patientsí safety during surgery.

  • • Up to 3 simultaneous waveform displays
  • • Monitored parameters include airway pressures, tidal volume, respiratory rate, and minute volume, among others.
  • • Plug-and-Play CO2 module or anesthetic agent module can monitor patient respiration, soda lime consumption, and concentration of anesthetic gases.*
  • • The system can provide up to 3 types of spirometry loop: Flow-Volume loop, Pressure-Volume, Pressure-Flow loop.*

Stable Anesthetic Delivery

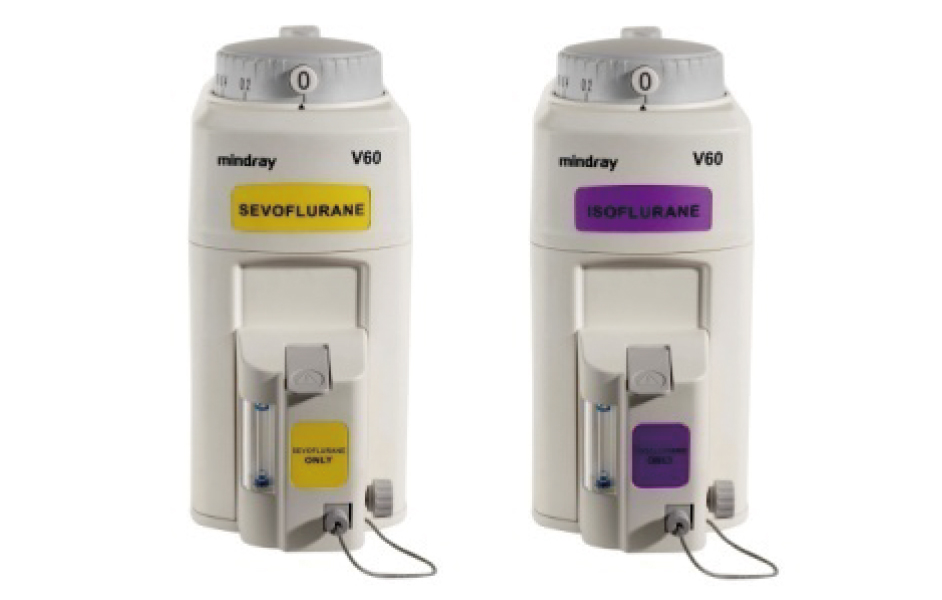

The V60 Vaporizer's automatic flow-temperature-pressure compensation ensures an accurate and constant concentration of inhalant anesthetic agents under any environmental condition.

  • • FDA & CE approved
  • • Calibration-free design
  • • Strict quality testing for human medical standards

* This configuration is optional

Better Usability
The WATO EX-35Vet has been developed to make your routine workflow easier. A feature rich, ergonomically designed anesthesia system that can be positioned with ease and used for prolonged periods without experiencing unnecessary stress or fatigue.

Easier Settings with Touch-screen

  • • 10.4 inch high resolution screen
  • • Common operations in less than 3 steps

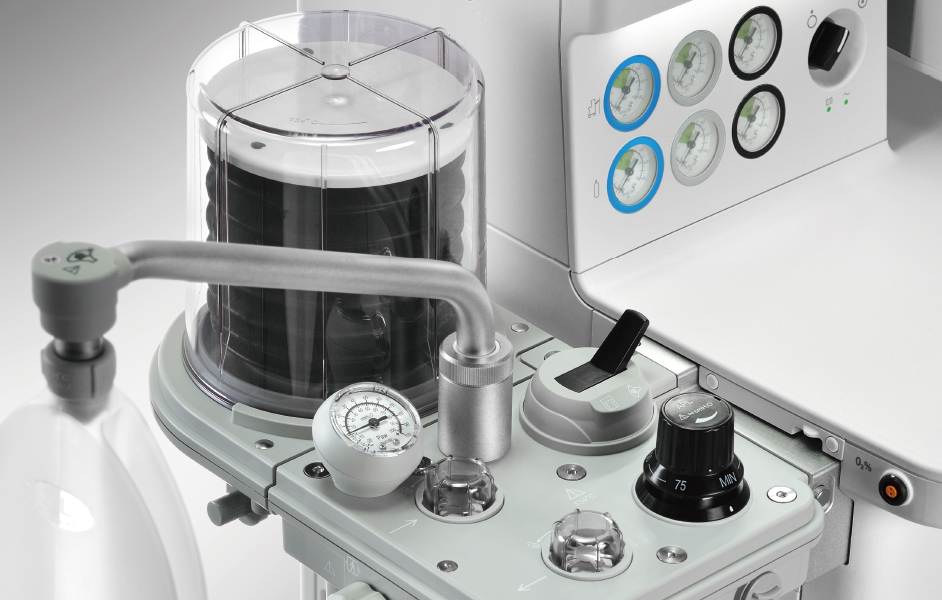

Integrated Breathing System

  • • Switch between manual and mechanical ventilation quickly
  • • Switch between rebreathing and non-rebreathing circuit quickly
  • • Transparent soda lime canister, clear to observe and ease to disassemble
  • • Heated module to avoid flow monitoring shifted by the condensate, and deliver warmer gas to animals

Automatic Leak Testing

  • • Graphic and written on-screen instructions, including troubleshooting
  • • Automatic calculation of appropriate compensation flow rate

Gas Scavenging Solution

  • • Optional passive or active gas scavenging solution
  • • Reduces waste gases in the environment, keeping staff safe
