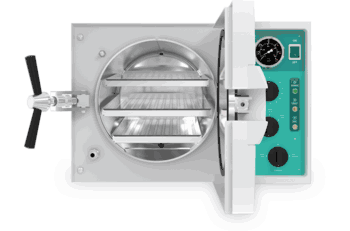

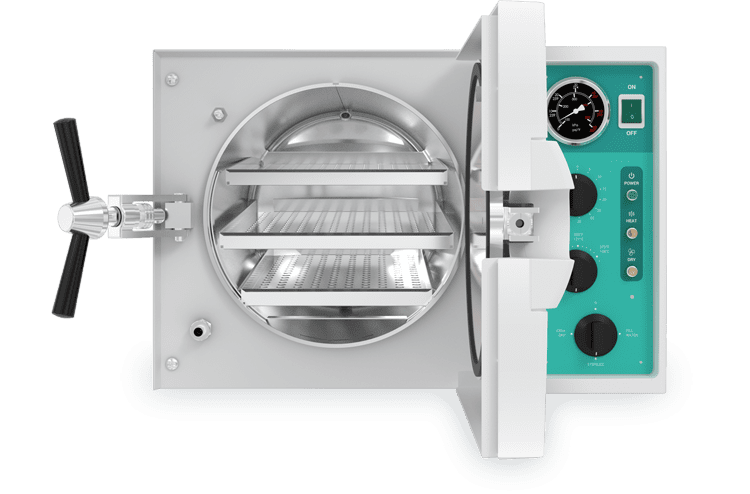

Tuttnauer TVET 9M Manual Veterinary Autoclave

Tuttnauer TVET 9M Manual Veterinary Autoclave
Click Image to Enlarge
Item #:


Request for more information:

*
*
*
*
*






* Indicates required field!



The most cost-efficient solution for your clinic.

The perfect Autoclave developed exclusively for Veterinarians. The tvet line fits all your sterilization needs by creating cycle parameters to accommodate double wrapped pouches. These cycles ensure sterility and efficient drying of packs and pouches, helping veterinarians meet today's challenging workloads.

The small but mighty tvet 9M offers unparalleled quality for clinics on a budget. This maintenance free plug-and-play autoclave features a 5-gallon stainless steel chamber, just big enough to fit your most important veterinary equipment. Activate each stage of the sterilization cycle with a single touch. Packed with features for the fastest, most versatile operation, the tvet 9M delivers outstanding performance , unmatched safety features and intuitive controls for the most demanding high volume environments.

3 Trays, Tray handle included

Safe-Locking Door
Easy to use with one hand, the decorative stainless steel door has a double safety mechanism

Intuitive Control
Designed with the operator in mind, the colorful control panel is intuitive and easy to use

Simple Drainage
A drainage valve is conveniently located at the front, allowing you to quickly and easily drain the water reservoir

Durable Chamber
Made to last, the electropolished 316L stainless steel chamber is backed by a 10-year warranty

Overheating Protection
The dual safety thermostat and automatic shut-off at the end of all cycles provide reliable overheating protection

Dimensions (D x W x H) Chamber Dimensions
21.5" x 20" x 14.4" 9" x 18"
545mm x 510mm x 365mm 230mm x 470mm

Chamber Volume Tray Capacity
19 Liter 3 Trays
5 Gallon

Tray Dimensions Standard Cassette Capacity
16,3" x 6,7" x 0.8", 2 Full & 2 Half*
442mm x 170mm x 20mm

Voltage & Frequency Power & Current
120V 1400W
50-60Hz 12A

Shipping Weight
85 Lbs *Standard full size cassette is 8 x 11 and standard half size cassette is 8 x 5.5
39 kg

Standards & Directives Pressure Vessel
All pressure vessels and boilers are certified according to ASME code section I and section VIII, Div. I and 2014/68/EU - Pressure Equipment Directive
Quality Standards
ISO 9001:2015 Quality Management System
ISO 13485:2016 Quality Management System - Medical Devices
ISO 14001:2015 Environmental Management System
Canadian MDR (CMDR) SOR/98-282 (2018), consolidated

Technical Standards
ANSI/AAMI ST55:2016
Directives
93/42/EEC Medical Devices Directive
