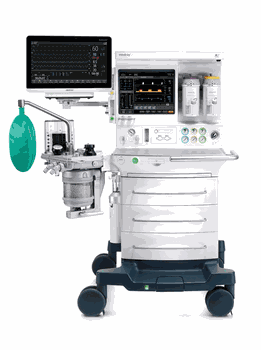

Optimized anesthesia delivery and workflow efficiency
The A7 Advantage further expands A-Series capabilities with electronic fresh gas control technology to ensure precise flow dynamics. Recycled sample gas reduces the amount of fresh gas and agent used to enhance clinical and cost-saving requirements and Total Flow or Direct Flow settings ensure accurate and responsive anesthesia delivery. Standard safety features, advanced ventilation modes, and a high-pressure O2 port support initial clinical needs with advanced ventilation, lung protective strategies and workflow tools available for workflow efficiency. Direct HL7 data output provides industry-standard connectivity for AIMS and EMR systems, reducing the expense associated with data integration. The A7 complements clinical workflow in an intuitive, high-performance anesthesia workstation.
Standard Features
- • Electronic fresh gas control with choice of Total Flow and Direct Flow settings for precise and responsive anesthesia delivery
- • Sample gas is recycled into the breathing system, reducing the amount of fresh gas and agent used intracase
- • 15″ color touchscreen with digital flow meters, backup touchpad and customizable settings eliminate deep menus, control knobs, and dedicated buttons
- • Standard ventilation modes include VCV, CPAP/PS, PCV, PCV-VG, SIMV-VC, SIMV-PC and Manual breathing mode with respiratory monitoring
- • ACGO for use with non-rebreathing circuits
- • Integrated suction
- • Pull-out work table and adjustable LED lighting
- • Standard 3-year warranty on Anesthesia Machine Systems
Optional Features
- • Advanced ventilation capabilities with SIMV-VG, Spirometry loops, and Cardiac bypass and supported lung protective strategies with APRV and Lung Recruitment
- • Optimizer low flow decision support tools help manage intraoperative fresh gas dynamics, visualize real time agent usage and quantify end of case agent consumption
- • Integrated Gas Analysis with Auto Agent ID, Capnography, and Age Calculated MAC value
- • Flexible bag arm and three in-line vaporizer mount
Safety Features
- • Quick release APL valve reduces airway pressure while maintaining set limit
- • Ability to deliver O2/N2O/Air and vaporized agent regardless of power state
- • Backup flow controls for O2 and Air in the event of power loss
- • Auxiliary O2/Air flow meters deliver blended gas via nasal cannula, potentially reducing the risk of airway fire
- • High pressure O2 port supports jet ventilation
- • Warmed breathing system minimizes internal condensation
- • CO2 absorbent can be changed quickly during a case and uses non-proprietary pre-pack or loose fill soda lime
- • Easy to move machine with robust wheels, central brake, and integrated cable sweeps
- • 2-hour battery back up
A7 Advantage Brochure
