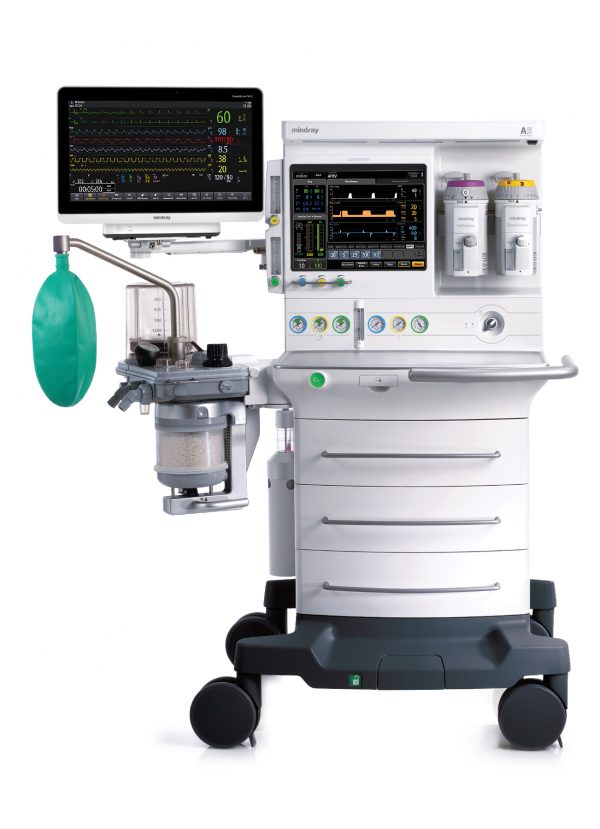

The A5 Advantage offers modular scalability with enhanced functionality for effective care across a wide range of patient types, from neonate to bariatrics. Standard safety features, advanced ventilation modes, central locking brake, and a high-pressure O2 port support initial clinical needs with advanced ventilation modes, lung protective strategies and workflow tools available for true scalable functionality. Direct HL7 data output provides industry standard connectivity for AIMS and EMR systems, reducing the expense associated with data integration. The scalable A5 is an ideal choice for hospital standardization and cost-effective anesthesia management.
Standard Features
- • 15″ color touchscreen with digital flow meters, backup touchpad and customizable settings eliminate deep menus, control knobs, and dedicated buttons
- • Standard ventilation modes include VCV, CPAP/PS, PCV, PCV-VG, SIMV-VC, SIMV-PC and Manual breathing mode with respiratory monitoring with many optional advanced modes offered
- • Automatic compliance and fresh gas compensation maintain accurate tidal volumes
- • Standard 3-year warranty on Anesthesia Machine Systems
Optional Features
- • Advanced ventilation capabilities with SIMV-VG, Spirometry loops, and Cardiac bypass and supported lung protective strategies with APRV and Lung Recruitment
- • Optimizer™ low flow decision support tools help manage intraoperative fresh gas dynamics, visualize real time agent usage and quantify end of case agent consumption
- • Integrated Gas Analysis with Auto Agent ID, Capnography, and Age Calculated MAC value
- • Quick release APL valve reduces airway pressure while maintaining set limit
- • Flexible bag arm and three in-line vaporizer mount
Safety Features
- • Ability to deliver O2/N2O/Air and vaporized agent regardless of power state
- • Auxiliary O2/Air flow meters deliver blended gas via nasal cannula, potentially reducing the risk of airway fire
- • High pressure O2 port supports jet ventilation
- • Warmed breathing system minimizes internal condensation
- • CO2 absorbent can be changed quickly during a case and uses non-proprietary pre-pack or loose fill soda lime
- • Easy to move machine with robust wheels, central brake, and integrated cable sweeps
- • 2-hour battery back up
Mindray A5 Advantage Advanced Anesthesia System Brochure
