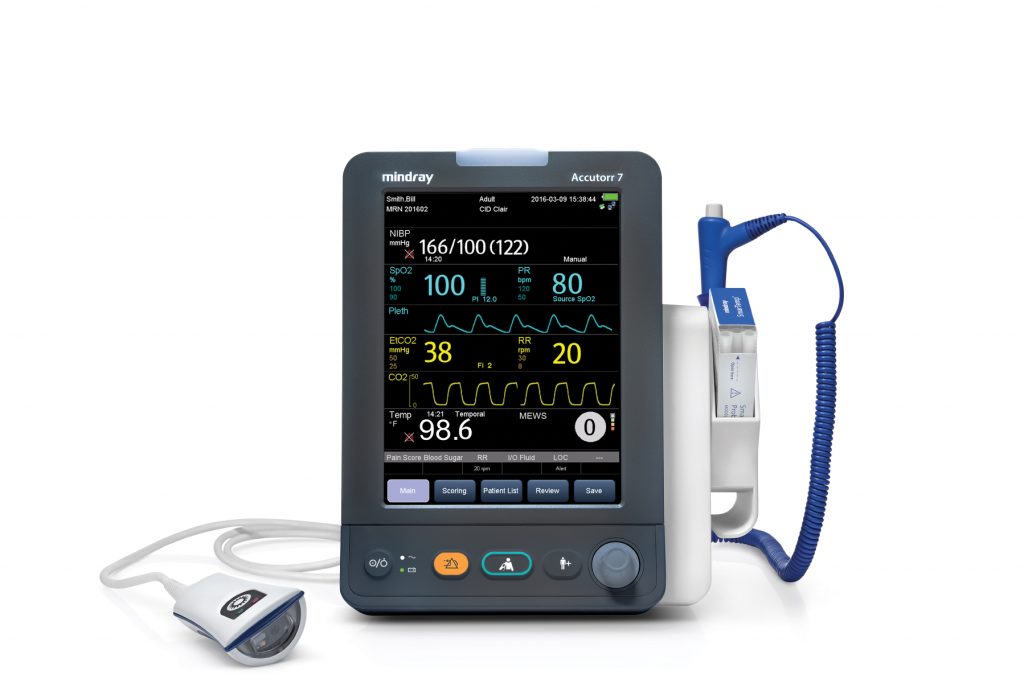

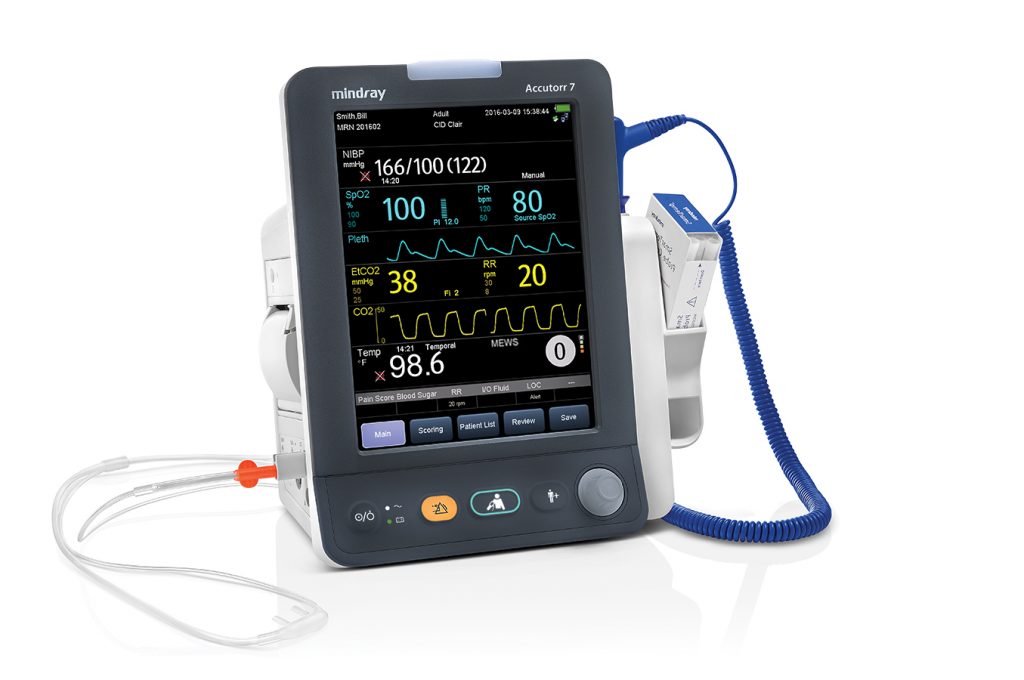

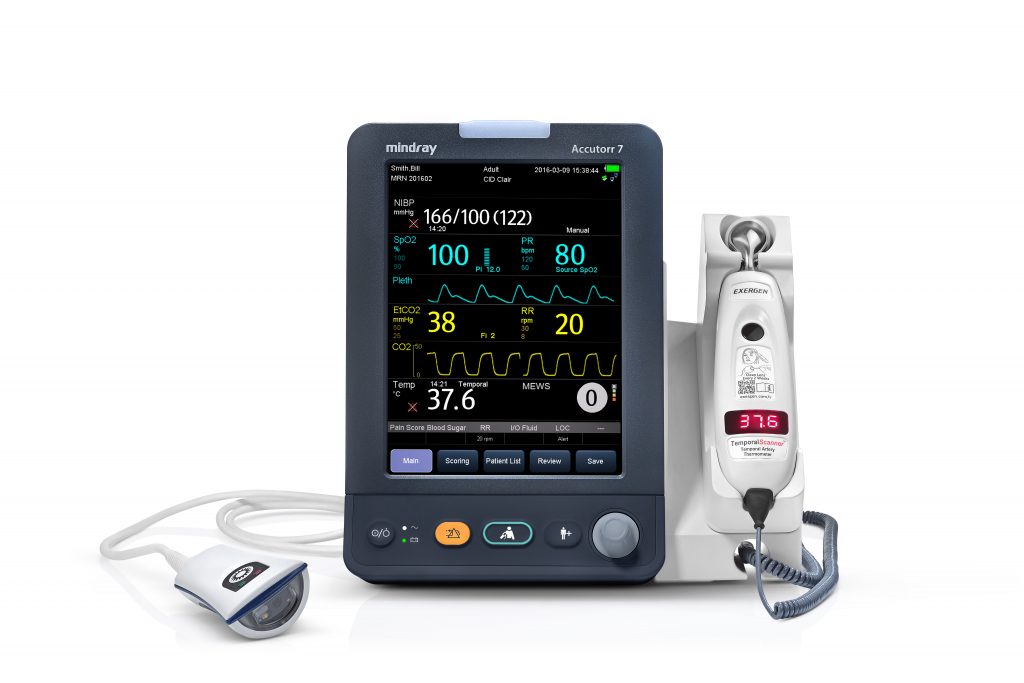

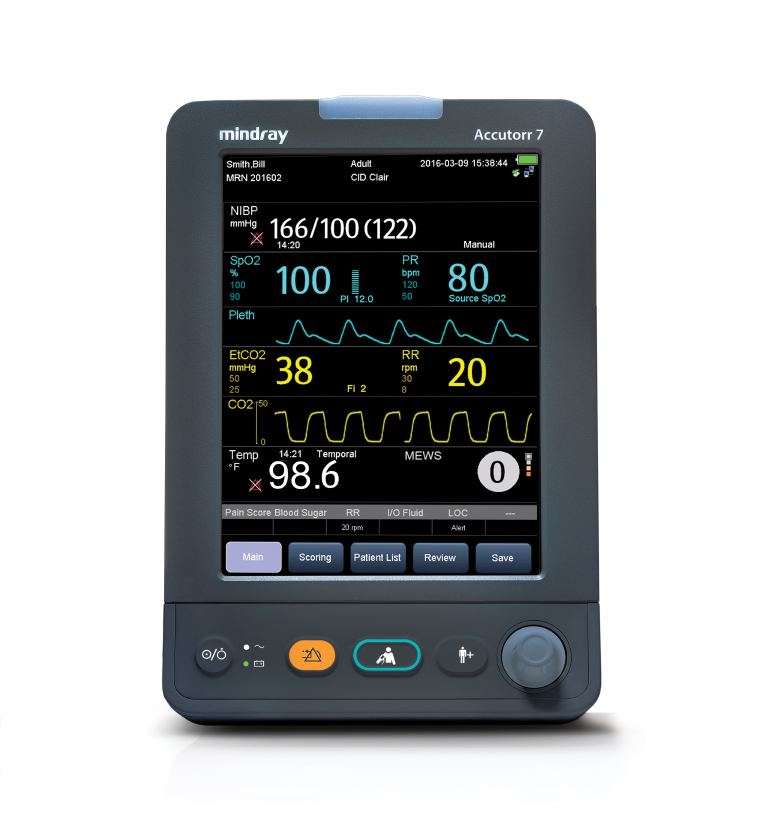

Mindray Accutorr 7 Vital Signs Monitor

Mindray Accutorr 7 Vital Signs Monitor
Mindray Accutorr 7 Vital Signs Monitor
Mindray Accutorr 7 Vital Signs Monitor
Mindray Accutorr 7 Vital Signs Monitor
Click Image to Enlarge
Item #:

Request for more information:




* Indicates required field!


From spot check monitoring to continuous bedside monitoring

Meeting the needs of low acuity areas, the Accutorr 7 is an easy to use vital signs monitor that is ready to go when you are. From spot check to continuous monitoring, assess patients’ vitals with NIBP, SpO2 and temperature measurements. Exergen Temporal Scanner™ Thermometer quickly measures patient temperature and provides significant cost savings by eliminating probe cover usage. With the addition of low flow sidestream CO2 and central monitoring connectivity, identify signs of patient deterioration due to respiratory distress. The integrated early warning scoring system can aid in clinical decisions. With its flexibility, the Accutorr 7 is a vital solution for delivering quality care.

The Accutorr 7 is designed to be connected. In today's healthcare environment, vital sign data collection, validation and timely EMR posting are essential in providing the best possible medical care. The Accutorr 7 offers flexible connectivity options meeting your institutional requirements. With wireless capabilities using shared infrastructure, mobility between patients and real time data posting at point-of-care to your EMR can improve efficiency and reduce manual errors.

Accutorr 7 – Vital Signs Machine Key Features

  • • Large 8.4″ back-lit high resolution TFT display provides clear view
  • • Intuitive touchscreen offers easy access to information
  • • Available SpO2 technology includes Masimo SET® (standard) or Nellcor Oximax® PI (Perfusion Index) from SpO2 can guide caregivers to best measurement location
  • • Temperature options include: Exergen Temporal Scanner™ and Mindray SmarTemp™ Manual, automatic and customizable NIBP measurement modes offer flexibility for various clinical applications
  • • Standard MEWS (Modified Early Warning Score) offers effective support for clinical decisions
  • • Manual input of vitals such as respiration rate, pain level, glucose, fluids and degree of consciousness
  • • Low flow sidestream CO2 provides measurements of FiCO2, etCO2, awRR with a CO2 waveform
  • • Stores up to 5000 measurements, accessible by patient ID for easy review
  • • Optional barcode scanner can speed patient ID input
  • • Choice of hardwired or wireless EMR connectivity options
  • • Integration with ADT and results messaging easily accomplished via Mindray's powerful eGateway
  • • Direct HL7 interface capabilities Clinician authentication through Mindray MLDAP Server connecting with the hospital Active Directory (AD)
  • • Centrally monitor patients on the Accutorr 7 with the Mindray BeneVision Central Station
  • • Supports nurse call interface Standard RS-232 interface for third party connectivity solutions

Network port
2 USB ports
Multifunctional port

Type: Rechargeable lithium ion
Run Time: Up to 8 hours when powered by a new fully-charged battery at 77°F±41°F (25°C±5°C) with SpO2 and NIBP measurements at an interval of 15 minutes.

Charge Time
Monitor Power Off: Less than 5.5 hours to 90%; Less than 6.5 hours to 100%
Monitor Power On: Less than 10.5 hours to 90%; Less than 11.5 hours to 100%

Physical Dimensions
Monitor Size: 10.2" (H) x 6.9" (W) x 6.9" (D) 25.9 cm (H) x 17.5 cm (W) x 17.5 cm (D)
Monitor Weight: <5.5 lbs (<2.5 kg) including battery

Environmental Conditions
Operating Temperature: 0°C to 40°C (SmarTemp™: 5°C to 40°C)
Operating Humidity: 15% to 95%, non-condensing
Baromatric: 427.5 to 805.5 mmHg (57.0 to107.4 kPa)

Power Requirements 100 to 240 VAC, 0.9 to 0.5 A, 50/60 Hz

Type of Protection: Meets the requirements of IEC 60601series
