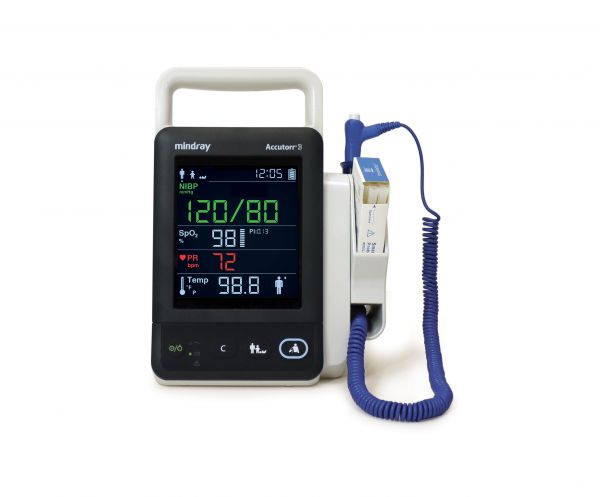

Mindray Accutorr 3 Spot Check Monitor
Vital Signs Monitor
Compact, lightweight portable
The Accutorr 3 is a compact, lightweight portable spot check monitor ideal for the low acuity areas of your hospital. It is easy to transport from bed to bed, whether by its integrated handle or a compact rolling stand. With its touchpad user interface it is also simple to use.
The Accutorr 3 offers a standard RS-232 interface that allows for the direct export of vital signs data into an Electronic Medical Record (EMR).
Key Features
- • Comfortable carrying handle
- • Li-ion battery provides up to 22 hours of continuous use
- • Four button user interface allows simple navigation through all Accutorr 3's parameters and settings
- • Easy selection of adult, pediatric and neonatal patient size settings
- • Standard RS-232 communication supports connections to EMR solutions
- • Mounting options include an easy-to-maneuver rolling stand and wall mounts with quick release mounting brackets
- • High definition LCD provides clear view of patient data
- • Highly mobile vital signs solution weighing 4 lbs (1.9 kg)
- • All functions accessible through four button touchpad
- • Standard parameters include NIBP and pulse rate
- • Available SpO2 technology includes Masimo SET® (standard) or Nellcor® OxiMax®
- • Optional Mindray SmarTemp® or Welch Allyn® SureTemp® Plus temperature
- • PI (Perfusion Index) provides indication of SpO2 measurement reliability
Interfacing
Connectors: Serial port for software upgrade and DIAP protocol
Battery
Type: Rechargeable lithium ion
Run Time: Up to 22 hours when powered by a new fully-charged battery at 77°F±41°F (25°C±5°C) with SpO2 and NIBP measurements at an interval of 15 minutes.
Charge Time
Monitor Power Off: Less than 5.5 hours to 90%; Less than 6.5 hours to 100%
Monitor Power On: Less than 10.5 hours to 90%; Less than 11.5 hours to 100%
Physical Dimensions
Dimension: 9.6" (H) x 4.7" (W) x 5.3" (D) 24.4 cm (H) x 11.9 cm (W) x 13.5 cm (D)
Weight: <4.2 lbs (<1.9 kg) including battery
Environmental Conditions
Operating Temperature: 0°C to 40°C (SmarTemp™: 5°C to 40°C)
Operating Humidity: 15% to 95%, non-condensing
Baromatric: 427.5 to 805.5 mmHg (57.0 to107.4 kPa) Power Requirements 100 to 240 VAC, 0.9 to 0.5 A, 50/60 Hz
Safety
Type of Protection: Meets the requirements of IEC 60601series
Connectors: Serial port for software upgrade and DIAP protocol
Battery
Type: Rechargeable lithium ion
Run Time: Up to 22 hours when powered by a new fully-charged battery at 77°F±41°F (25°C±5°C) with SpO2 and NIBP measurements at an interval of 15 minutes.
Charge Time
Monitor Power Off: Less than 5.5 hours to 90%; Less than 6.5 hours to 100%
Monitor Power On: Less than 10.5 hours to 90%; Less than 11.5 hours to 100%
Physical Dimensions
Dimension: 9.6" (H) x 4.7" (W) x 5.3" (D) 24.4 cm (H) x 11.9 cm (W) x 13.5 cm (D)
Weight: <4.2 lbs (<1.9 kg) including battery
Environmental Conditions
Operating Temperature: 0°C to 40°C (SmarTemp™: 5°C to 40°C)
Operating Humidity: 15% to 95%, non-condensing
Baromatric: 427.5 to 805.5 mmHg (57.0 to107.4 kPa) Power Requirements 100 to 240 VAC, 0.9 to 0.5 A, 50/60 Hz
Safety
Type of Protection: Meets the requirements of IEC 60601series
Accutorr 3 Brochure
