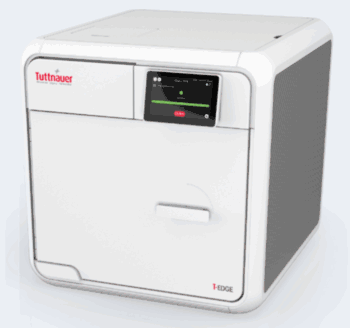

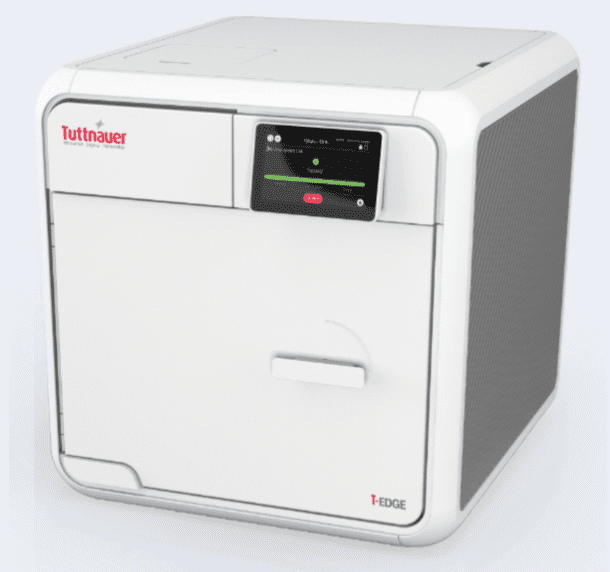

The only gravity and airflow removal autoclave upgradable to pre/post vacuum
Designed to meet all the most current sterilization standards ANSI/AAMI ST55 ensuring highest sterilization levels and highest quality constructions to ensure longevity.
Fast Cycles
36 Minute wrapped instruments complete cycle, including drying
Optimal chamber capacity
More than 75% chamber capacity extra-long trays

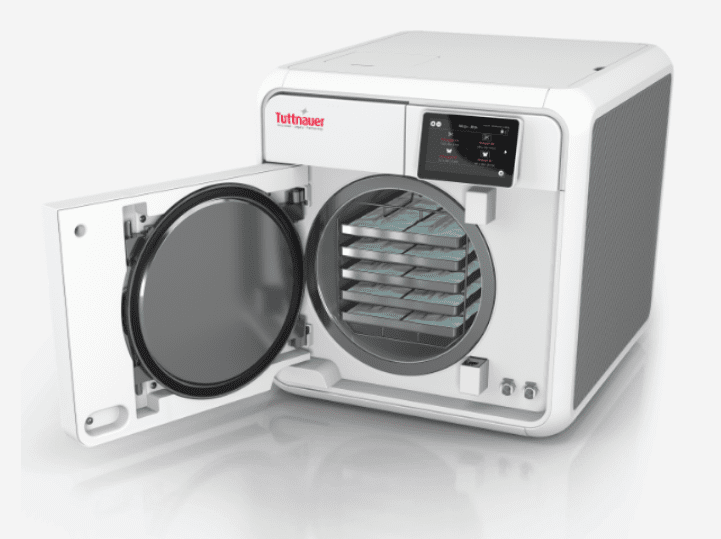

Convenient loading
Convenient and easy loading with door opening to 110°
Advanced documentation
A variety of documentation and traceability options and barcodes
User-friendly touch screen control panel
Displays programs, cycles times, water levels and more
| Overall Dimensions (DxWxH) |
|---|
| 21.1" x 18.89” x 19.68” |
| Chamber Volume |
|---|
| 6 Gal / 23 Liters |
| Chamber Size (Depth x Ø) |
|---|
| 18” x 10” |
| Tray Capacity |
|---|
| 5 Trays |
| Connections |
|---|
| 1 ethernet port, 4 USA ports, WiFi, intergrated automatic water filling and drain connection |
| Item Supplies |
|---|
| Drain tube, tray holder |
| Power Consumption |
|---|
| 1700W (230V), 2000W (110V) |
| Power Supply & Frequency |
|---|
| 110V, 60Hz or 230V, 60Hz |
| Weight |
|---|
| 110 Lbs. |
Tuttnauer T-EDGE 10 AUTOCLAVE Brochure
