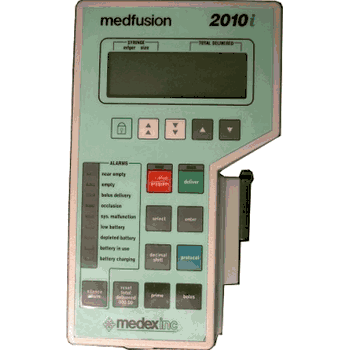

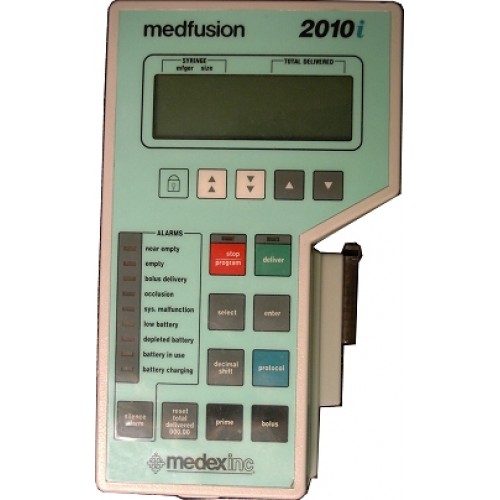

Medex Medfusion 2010i Infusion Pump

Medex Medfusion 2010i Infusion Pump
Click Image to Enlarge
Item #:
12575
Available Refurbished


Request for more information:

*
*
*
*
*






* Indicates required field!



Specifications

Dimensions: 4.5" W x 3.0" H x 7.5" L

Weight: 2.5 pounds

Accuracy: +/- 3% excluding syringe variations

Infusion Modes:

Body Weight Mode:

- µg/kg/min µg/kg/min - MG/kg/min MG/kg/HR

Mass Modes:

- µg/min µg/HR - MG/min MG/HR - mU/min mU/HR - U/min U/HR

Continuous Mode:

- ml/min ml/HR

Volume Over Time Mode:

- Volume/time

Flow Rate: 0.01 to 378.0 ml/HR dependent on syringe size selected

Bolus Delivery: In Body Weight, Mass and Continuous Modes

Power: AC Adapter - DC internal rechargeable batteries

Recharge Time: No longer than 16 hours with the pump turned off

Battery Capacity: at 25ŗC, a 16 hour charge will operate the pump for approximately 10 hours at 5.0 ml/hr with a 60 ml syringe.

  • Alarms/Alerts:
  • - Near Empty (5 to 60 minutes)
  • - Empty
  • - Dose Volume Delivered
  • - Bolus Complete
  • - Bolus Delivery
  • - Occlusion
  • - System Malfunction
  • - Low Battery
  • - Depleted Battery
  • - Syringe Pops Out
  • - Invalid Size
  • - Invalid Number
  • - Check Clutch
  • - Alarm Temporary Delay: 2 or 60 minutes
  • - Alarm Audio Volume: Soft or Loud
  • - Load Syringe Plunger
  • Status Alerts Visual, Non Audible:
  • - Stop/Program
  • - Deliver
  • - Battery In Use
  • - Battery Charging
  • - Battery Depleted
  • - Priming
  • - Standby Mode
  • - Back Light

  • Total Delivery:
  • - From 0.0000 to 9999.9999 MG
  • - From 0.00 to 9999.99 ml
  • - From 0.0000 to 9999.9999 U
  • Syringe Options/Sizes:
  • Becton-Dickinson (B-D®): 1,3,5,10,20,30,60 ml
  • Monoject® (Mono): 1,3,6,12,20,35,60 ml
  • Terumo® (Teru): 1,3,5,10,20,30,60 ml
  • Becton-Dickinson Glass (BG-G) 1,3,5,10 ml
  • Abboject®: 50 ml
