Burton AIM-200 OR Lights

Item #: AIM200
  • Description
  • Specifications
  • Accessories
  • Support Document

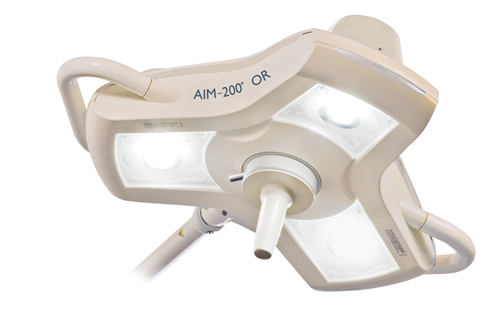

Burton AIM-200® Double Ceiling The right light for Operating Room Procedures.

Burton’s new AIM-200 OR provides versatility, amazing illumination, unparalleled aesthetics and many more features that make it the right light for any procedure. This light is ideal for long hours of use with three (per lighthead) cool 35-watt IRC halogen bulbs - each rated with a 1400-hour average bulb life per lighthead.

The AIM-200 OR. With its 360° limitless arm-and-mounting-system-rotation the AIM-200® OR is the most versatile and practical light for the Operating Room environment.

Supported by an industry-leading 5-year limited warranty, AIM-200 OR exceeds customers' expectations.

The most versatile surgical light on the market today, Burton's new AIM-200® OR provides amazing illumination (CRI of 96, 90,000 lux at 1 meter, and a color temperature of 3700 Kelvin) and unparalleled aesthetics.

Models:

115V---------230V

#A200FL #A203FL AIM-200® OR Floorstand

#A200SC #A203SC AIM-200® OR Single Ceiling

#A200DC #A203DC AIM-200® OR Double Ceiling

#A200W #A203W AIM-200® OR Wall



  • Technical Specifications
  • • Illuminance:* 180,00 Lux at 1 meter (Lux readings with combined lightheads)
  • • Color temperature: 3700 k
  • • CRI: 96
  • • Diameter of Lighthead: 51 cm (20 in.)
  • • Light Field Diameter: 25 cm - 30 cm (10 in. - 12 in.)
  • • Depth of Illumination: 119 cm (47 in.)
  • • Focusing: Adjustable by rotating center handle
  • • Number of Bulbs: 3 per head
  • • Light Sources (Halogen): 34W IRC, 12 volt, bi-pin
  • • Rated Life of Halogen Lamp: 1,400 hours
  • • Swivel Radius of Lamp Housing-Ceiling Mounted: 152 cm (60 in.) max.
  • • Height Movement of Lamp Housing-Ceiling Mounted: 104 cm (41 in.) vertical movement
  • • Minimum Ceiling Height/Maximum Ceiling Height: 2440 mm/3660 mm (8 ft./12 ft.)
  • • Power: 105 Watts
  • • Total Weight: Floor version 15.9 kg (35 lbs.), single ceiling version 15.4 kg (34 lbs.)
  • • Seismic Calculations Available: Yes
  • • 5-year limited warranty
  • • Origin: Manufactured in the USA
  • Certifications/Approvals
  • • UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41
  • • MDD 93/42 EEC (CE Approved)
  • • CAN/CSA C22.2 601-1 M90
  • Accessories:
  • #1017111PK Set of 3 AIM-200® OR Replacement Bulbs
  • #1017040 Sterilizable Handle
  • #0008100PK Set of 25 Disposable Handle Covers
