Outpatient® II - MINOR SURGERY
Why is the Outpatient II judged to be the "unanimous light of choice" for clinics, surgical suites, hospital emergency rooms and nearly every application where optimal light and value pricing are required?
The Outpatient® II offers the features health facilities want most, including focus ability, pure white, intense light in a flood-type pattern and guaranteed, no-drift arm. With 3600 degrees K color temperature and three halogen bulbs wired in parallel to assure continuous light output, the Outpatient ® II is…
Outpatient® II - MINOR SURGERY
Why is the Outpatient II judged to be the "unanimous light of choice" for clinics, surgical suites, hospital emergency rooms and nearly every application where optimal light and value pricing are required?
The Outpatient® II offers the features health facilities want most, including focus ability, pure white, intense light in a flood-type pattern and guaranteed, no-drift arm. With 3600 degrees K color temperature and three halogen bulbs wired in parallel to assure continuous light output, the Outpatient ® II is the one light all physicians can use for minor surgeries, procedures and exams. The Outpatient II's SteriHandleTM is autoclavable and accepts Burton's Disposable Light Covers. Plus, Outpatient ® II single ceiling, double ceiling and combo models are standard with either 30" or 42" (.76m or 1.07m) drop tubes for added convenience. Specify drop tube length at time of order only.The Outpatient® II is available in complete models only due to its unique design.
Outpatient® II
The Outpatient® II is the documented industry leader for diagnostic and procedure lights. More physicians choose the Outpatient® II than any other diagnostic light for focusable flood-type light, maximum intensity and shadow-free operation. With minimal heat output and high color temperature, the Outpatient II® is the perfect low-maintenance, top performing light for nearly every application in the hospital, surgical suite or physician’s office.
Technical Specifications
• 87,000 Lux (8,000 fc) at 24” (61cm)
• 3300° K color temperature
• CRI (Color Rendering Index): 94
• Focuses with central removable, autoclavable SteriHandle™
• Friction knob allows user to add more friction or lock the arm without a tool
• Cool operation assured with heat filters and dichroic coatings
• Shadow-free operation provided by three “optically improved” 50-watt halogen bulbs, each with 2000 hr. average bulb life
• Bulbs are wired in parallel to assure continuous operation
• Design allows removal or replacement of SteriHandle™ with one hand (for assuring sterile procedures)
• Floorstand units include footswitch, locking casters and cord wrap
• Mounting systems meet California Seismic Codes
• 120V model standard; 230V models also available
• 5-year limited warranty
Certifications/Approvals
• UL 60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41 Certified
• MDD 93/42 EEC (CE Approval)
• CAN/CSA C.22.2 601.1 M90
P/N Style
120V - #OP216FL 230V - #OP225FL
Outpatient® II Floorstand
120V - #OP216W 230V - #OP225W
Outpatient® II Wall
120V - #OP216SC 230V - #OP225SC
Outpatient® II Single Ceilling
120V - #OP216ST 230V - #OP225ST
Outpatient® II Single on Fastrac™
120V - #OP216DC 230V - #OP225DC
Outpatient® II Double Ceiling
120V - #OP216DT 230V - #OP225DT
Outpatient® II Double on Fastrac™
General Information
The Outpatient II light uses the most recent developments in light sources and materials to produce a superior procedure light for a wide variety of surgical, examination and procedure needs. The Outpatient II light is focusable and yields a very cool beam with uniform illumination. Other features include long bulb life, large illumination field due to a unique triple low voltage halogen bulb system and double filtering optics. The Model 0224100 light must be used with the Burton FleximountÔ mounting systems; Model 0224112 Outpatient II with Fleximount Floorstand Base and Upright, Model 0224122 Outpatient II with Fleximount Single Ceiling Mount, Model 0224132 Outpatient II with Fleximount Double Ceiling Mount (requires 2 Models 0224100), or Model 0224142 Outpatient II with Fleximount Wall Mount.
Approvals
Listed by UL (Underwriters Laboratories), CSA Certified, FDA registered.
Materials
Light Housing
polycarbonate (Lexan) structural foam
Yoke and arm/pivot adapters
aluminum
Yoke cover/arm tube
steel
Electrical Characteristics
Input Voltage:
115 volts AC, 60 Hz (cycles), single phase (may be wired for 230 volts AC, 50/60 Hz)
Input Current:
1.5 amperes (115 volts) or 0.75 amperes (230 volts)
Bulb Type:
FTY 8 degrees tungsten halogen with integral dichroic reflector, 12.0 volts, 50 watts, wired in parallel so that if one bulb burns out the others will remain on.
Bulb Life:
2000 hours average (each bulb).
Power Cord:
Ceiling mounts are directly wired in. Floor stand base and wall mount have SJT 18 AWG 3 wire 6' long power cords with a hospital grade plug.
Power Switch:
Push button, rated 12A at 250 v AC, double pole single throw for On/Off
Lamp Socket:
Dual pin; ceramic
Current Leakage:
Less than 100 micro amperes
Optical Characteristics
Distance (inches) (ft-cd) Intensity Spot Diameter
18 14,000 (FC) / 151,200 (LUX) 3 - 5 (in)
24 7,400 (FC) / 79,920 (LUX) 5 - 7 (in)
36 3,600 (FC) / 38,880 (LUX) 6 - 8 (in)
Color temperature: Approximately 3,600° Kelvin.
Infrared in the beam: Less than 25 milliwatts/square cm/fc (to IES standard).
Lighthead and Arm
Light head has three "pods": 8" from head axis to end of each pod, 4" (10.2 cm) lighthead thickness, 26" (66 cm) from lighthead pivot to arm attachment axis. Lighthead supplied removable and sterilizable autoclavable handle that accepts sterile covers. Sterile cover is included with each unit and replacement sets of 25 sterile packs are available (part number 0008100PK). Lighthead pivots 170 degrees on its yoke and the yoke pivots 340 degrees on the flexible arm. The flexible arm pivots 40 degrees above and below horizontal, for a total angular travel of 80 degrees. Guards around bulb opening; positioning knob.

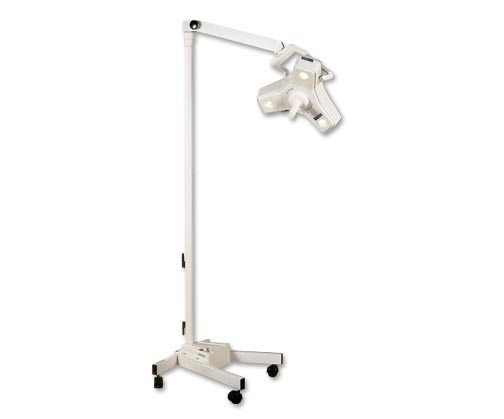

Floorstand Base
Maximum over all dimensions: 18" (46 cm) side to side, 19" (48 cm) front to back, 4.5" (11.4 cm) to top of legs. Includes four continuous swivel non-conductive casters (two locking casters)..
Floorstand Upright
Maximum over all height installed in base: 66" (168 cm), 1.5" (3.2 cm) diameter: with lighthead pointing down, distance from floor to front face is adjustable from 44" to 72" (112 cm to 183 cm). Head and arm pivot 40 degrees between floorstand base legs. Floorstand is equipped with wire wraps.

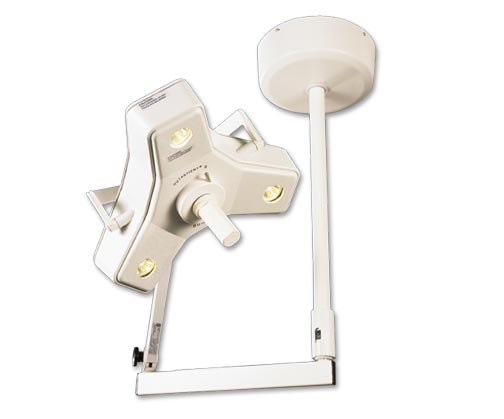

Single Ceiling Mount
12" (30.5 cm) diameter mounting plate and cover attaches to reinforced ceiling with three fasteners, 3/8" (9.53 mm) diameter, located on an 8" (203 mm) diameter hole circle, electrical input wires routed through a 2" (50.8 mm) cutout. Contains one ceiling mount pole which allows installation in rooms with ceilings up to 9.5' high (2.89 m) based on installing the arm at 80" (2.03 m) above the floor. Contains one fixed horizontal extension arm which is 17" (431.8 mm) from pivot to pivot. The extension arm pivots 320 degrees on the ceiling mounting pole and the flexible arm pivots 320 degrees on the extension arm. Maximum reach is 43" (1.09 m) from the ceiling pole axis to the lighthead pivot
Double Ceiling Mount
Mounting plate, cover, pole and extension arm dimensions, pivot data, and reach data same as single ceiling mount. Contains two extension arms.
Wall Mount
7" (177.8 mm) high 6" (152.4 mm) wide casting attaches to a main wall structural member (stud) or reinforcement as necessary with two fasteners 3/8" (9.53 mm) diameter. Casting extends 6" (152.4 mm) away from the wall. Contains one extension arm, 17" (431.8 mm) from pivot to pivot. Extension arm pivots 180 degrees on wall mount. Flexible arm pivots approximately 320 degrees on extension arm.
Finish
All products are painted light gray as a standard finish. Custom colors are available at additional charge – call for quotation.
