Home . Cardiology Equipment . Defibrillators | AED's . Cardiac Science Powerheart G5 AED Automatic Defibrillator

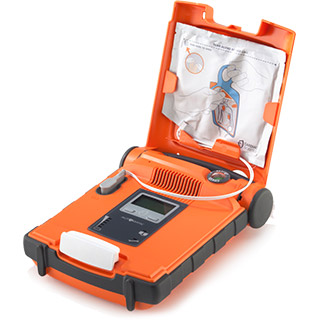

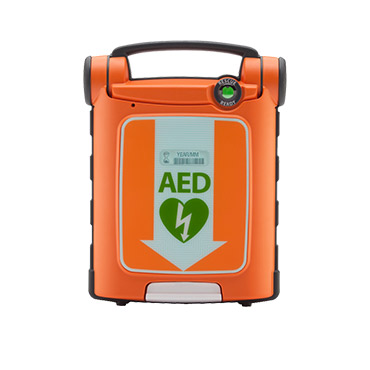

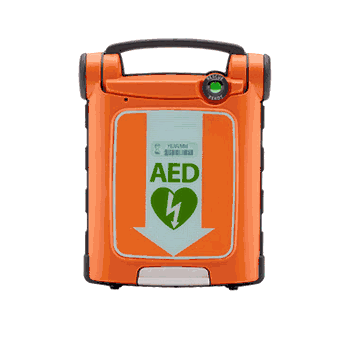

Cardiac Science Powerheart G5 AED Automatic Defibrillator

  • Description
  • Specifications
  • Support Documents
  • Accessories / Supplies
Cardiac Science Powerheart G5 AED Automatic

Easy, intuitive operation and user-paced prompts enable first-time rescuers to act quickly and confidently to a sudden cardiac arrest emergency.
  • DEFIBRILLATOR
  • Operations: Fully automatic
  • Waveform: STAR biphasic truncated exponential
  • Therapy range: (J) 95J to 354J (adult)
  • Fast shock feature: 5 energy protocols available
  • Voice prompts: RescueCoach prompts provide user-paced instruction Text screen Displays rescue prompts and critical rescue information
  • Audible alerts: Voice prompt, system alert
  • Synchronized shock: Built-in automatic synchronization feature
  • Pacemaker pulse detection: Yes
  • Synchronized shock: Built-in automatic synchronization feature
  • Pacemaker pulse detection: Yes
  • Pediatric capability: Therapy range (VE) 22J to 82J, pediatric prompts
  • Dual Language Latin American Spanish or French Canadian (optional)*
  • Customizable: Voice prompt, CPR settings, and shock protocols via AED Manager
  • CPR: Metronome for CPR compression rate
  • Visible indicators: Rescue Ready, battery, service, and pad status
  • Warranty: 8 years
  • PHYSICAL/ENVIRONMENTAL
  • Dimensions (H W D): 3.4 in 9.0 in 11.8 in (9 cm 23 cm 30 cm)
  • Weight: 5.7 lbs (2.6 kg), including battery and pads
  • Dust/water resistance: IP55 (IEC 60529)
  • Operating temperature: 32 F to +122 F (0 C to 50 C)
  • Altitude: 1,253 ft (382 m) to (15,073 ft) 4,594 m
  • Drop: MIL-STD-810G, 516.6 (Procedure IV) for 1.22 m drop
  • Shocks: MIL-STD-810G, 516.6 (Procedure 1)
  • Vibration (sine and random): MIL-STD-810G, 514.6 (Procedure 1, Cat 24)
  • EMI (radiated/immunity): IEC 60601-2-4
  • PADS Intellisense Defibrallation Pads
  • Type: Disposable, non-polarized (pads can be placed in either position)
  • Shelf life: 2 years
  • BATTERY Intellisense Lithium Battery DEFIBRILLATOR
  • Operations: Fully automatic
  • Waveform: STAR biphasic truncated exponential
  • Therapy range: (J) 95J to 354J (adult)
  • Fast shock feature: 5 energy protocols available
  • Voice prompts: RescueCoach prompts provide user-paced instruction Text screen Displays rescue prompts and critical rescue information
  • Audible alerts: Voice prompt, system alert
  • Synchronized shock: Built-in automatic synchronization feature
  • Pacemaker pulse detection: Yes
  • Synchronized shock: Built-in automatic synchronization feature
  • Pacemaker pulse detection: Yes
  • Pediatric capability: Therapy range (VE) 22J to 82J, pediatric prompts
  • Dual Language Latin American Spanish or French Canadian (optional)*
  • Customizable: Voice prompt, CPR settings, and shock protocols via AED Manager
  • CPR: Metronome for CPR compression rate
  • Visible indicators: Rescue Ready, battery, service, and pad status
  • Warranty: 8 years
  • PHYSICAL/ENVIRONMENTAL
  • Dimensions (H W D): 3.4 in 9.0 in 11.8 in (9 cm 23 cm 30 cm)
  • Weight: 5.7 lbs (2.6 kg), including battery and pads
  • Dust/water resistance: IP55 (IEC 60529)
  • Operating temperature: 32 F to +122 F (0 C to 50 C)
  • Altitude: 1,253 ft (382 m) to (15,073 ft) 4,594 m
  • Drop: MIL-STD-810G, 516.6 (Procedure IV) for 1.22 m drop
  • Shocks: MIL-STD-810G, 516.6 (Procedure 1)
  • Vibration (sine and random): MIL-STD-810G, 514.6 (Procedure 1, Cat 24)
  • EMI (radiated/immunity): IEC 60601-2-4
  • PADS Intellisense Defibrallation Pads
  • Type: Disposable, non-polarized (pads can be placed in either position)
  • Shelf life: 2 years
  • BATTERY Intellisense Lithium Battery
  • Guarantee: 4-year, full operational replacement
  • Capacity: 420 shocks (typical) at 300VE
  • AUTOMATIC SELF-TESTS
  • Daily, weekly, and monthly: Electrical circuitry, AED software, medical grade battery and defibrillation pads (presence and function)
  • Weekly: Includes partial energy charge
  • Monthly: Includes full energy charge cycle
  • EVENT DOCUMENTATION
  • Internal memory: 90 minutes of rescue data, multiple rescue functionality
  • ECG and rescue review: Viewable via AED Manager reporting and configuration software
  • Communications: USB cable or USB memory stick
  • Guarantee: 4-year, full operational replacement
  • Capacity: 420 shocks (typical) at 300VE
  • AUTOMATIC SELF-TESTS
  • Daily, weekly, and monthly: Electrical circuitry, AED software, medical grade battery and defibrillation pads (presence and function)
  • Weekly: Includes partial energy charge
  • Monthly: Includes full energy charge cycle
  • EVENT DOCUMENTATION
  • Internal memory: 90 minutes of rescue data, multiple rescue functionality
  • ECG and rescue review: Viewable via AED Manager reporting and configuration software
  • Communications: USB cable or USB memory stick
