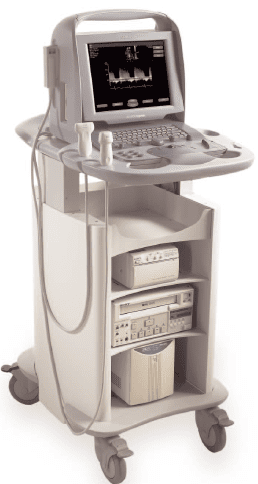

Medical Imaging Ultrasound Machines Acuson Cypress PLUS Portable UltrasoundAcuson Cypress PLUS Portable Ultrasound
View Complete SpecificationsQuick Specs!
Acuson Cypress cardiovascular system PLUS delivers advanced ergonomics and superior performance in a highly portable package. The Cypress System PLUS is a highly miniaturized, all digital, phased array echocardiography system that provides complete studies and outstanding images even on patients who are difficult to image.
The Cypress PLUS transitions easily from your small private office or hospital echo lab to the operating theatre or your patients bedside. Its ultrasound where you need it.
The Cypress PLUS delivers high performance in a…
Acuson Cypress cardiovascular system PLUS delivers advanced ergonomics and superior performance in a highly portable package. The Cypress System PLUS is a highly miniaturized, all digital, phased array echocardiography system that provides complete studies and outstanding images even on patients who are difficult to image.
The Cypress PLUS transitions easily from your small private office or hospital echo lab to the operating theatre or your patients bedside. Its ultrasound where you need it.
The Cypress PLUS delivers high performance in a complete range of cardiovascular capabilities.
Designed with advanced ergonomics in mind, the Cypress system PLUS streamlines your workflow and increases your productivity.
If you already own a Cypress system, keeping technologically current is simple with the Cypress Upgrade program.
The Cypress system is the smallest, lightest, high performance, phased array echo system ever built. Weighing in at just 19 pounds, with digital storage capacity for over 100 studies and network capabilities to send studies from remote locations, clinicians can perform complete echocardiography studies from almost anywhere. The Cypress system was designed for portability, durability and reliability, and to withstand the rigors of constant transportation. Internal system interconnects are minimized. Key components are shock mounted and the entire system sits inside a robust chassis. From hospital to office or from airplane to mountain village, the Cypress system will perform.
Full Range of Capabilities
The Cypress system is a complete, full-featured echo cardiography system that provides complete studies and outstanding image quality even on the most difficult to image patients. It offers a full range of features including:
- 2D with Harmonics
- Patient Report with audio capture
- M-Mode
- Embedded DICOM conformance
- Color PW and CW Doppler
- High frame rate color flow imaging
- Stress echo
- Network output
- Vascular imaging
- Comprehensive calculations package
- Contrast agent imaging
- USB peripheral support (PC printer connectivity)
Physical Characteristics
Single unit houses ultrasound system with control panel, flat panel display and MO drive
Weight: 8.6 Kg (19 pounds)
Height: 35.6 cm (14 in)
Width: 40.6 cm (16 in)
Depth: 20.3 cm (8 in) with keyboard folded up 34.3 cm (13.5 in) with keyboard down
Heat dissipation: 490 BTU/hour (nominal)
User Interface
Fold-up control panel for portability
Direct access to system functions through dedicated keyboard controls and multifunctional soft keys
Easy-access main controls, including multifunctional trackball, enter and select keys, for minimum hand movement while controlling the system
Adjustable trackball speed
Functional grouping of keys, rotational knobs, switches and sliding TGC controls for direct access to critical functions
Tactile feedback on control activation
Backlighting of control panel labels
Mode-dependent soft keys
User-interface tools
Pre-defined and user-entered labeling text
Monitor
10.4 inch/26.4 cm flat panel active matrix display screen
Protective anti-glare, anti-reflective lens
Hard Drive
Internal hard drive for image and data storage
Internal storage of approximately 50 patient studies (25 30 loops per study)
Transducer Ports
One transducer connector (type IEC601BF)
Operating/Display Modes
2-D, fundamental and harmonic imaging
Color Doppler Velocity (CDV)
Color Doppler Energy (CDE)
M-mode, vertical split screen display with 2-D
Pulsed Wave (PW) Spectral Doppler
Continuous Wave (CW) Spectral Doppler
Duplex Doppler (combined 2-D and Spectral Doppler display)
2D Calipers Generic Measurements and Calculations
Measurements and calculations in 2D, M-mode, color Doppler, PW and CW spectral Doppler modes
Basic measurements and report calculations
Comprehensive patient calculations report
On-screen "mini-reports"
Complete or configured patient report
Cardiac package
Carotid package
Arterial package
Venous package
Abdominal package
User configurable Sites
Selectable menu position
Four cursor types
Angle correction
Distance
Area
Slope
Time
Velocity
Velocity/pressure
Mean velocity/pressure gradient
Velocity Time Integral
Pressure halftime
Continuity Equation
Ejection Fraction
Left Ventricular Volumes, including End-Systolic and End-Diastolic volumes
Cardiac output
Cardiac index
Fractional area change
Cine Review
2D Cine memory up to 15 seconds of history
Color Doppler cine memory up to 15 seconds of history
M-mode strip cine along with PW and CW Doppler mode
strip cine memory determined by sweep speed (selectable by the user) 10, 20, 30 or 40 seconds
Transducer Technology
3V2c: 2-4 MHz wideband phased array
7V3c: 3-7 MHz wideband phased array
7L3: 5-7 MHz wideband linear array (Vascular)
4C1: 2-4 MHz wideband curved linear array (Abdominal)
V5Ms: 3-6 MHz wideband phased array (micro-pinless (MP) connector)
