Cardiology Equipment Stress Test Systems GE Series 2100 Treadmill
Service Directory
Cardiology Equipment Stress Test Systems GE Series 2100 TreadmillGE Series 2100 Treadmill
View Complete SpecificationsQuick Specs!

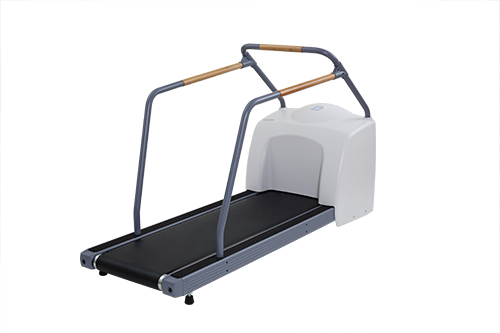

The T-2100 treadmill’s extra-long, 60-inch surface provides an extra margin of safety for patients. Its zero start feature slowly builds up speed for safe and smooth operation. And it can be slowed to a gradual stop, or stopped immediately with the standard emergency stop button. Full front and side handrails are also standard on the T-2100 treadmill. With fewer moving parts than other treadmills, the T-2100 treadmill delivers extremely smooth, quiet operation that facilitates accurate blood pressure measurements even at high workloads. Thanks to digital…
The T-2100 treadmill’s extra-long, 60-inch surface provides an extra margin of safety for patients. Its zero start feature slowly builds up speed for safe and smooth operation. And it can be slowed to a gradual stop, or stopped immediately with the standard emergency stop button. Full front and side handrails are also standard on the T-2100 treadmill. With fewer moving parts than other treadmills, the T-2100 treadmill delivers extremely smooth, quiet operation that facilitates accurate blood pressure measurements even at high workloads. Thanks to digital microprocessor control, its settings never need to be calibrated. And a 450-pound weight capacity and speed range of 0-13.5 miles per hour set the T-2100 treadmill apart from other devices.
Performance Specifications
Maximum Rated Load: 182 kg (450 lbs.)
Drive Motor: 3.0 HP, brushless, DC motor
Elevation Motor: 0.13 HP
Belt Speed Range: 0.0 to 22.5 km/hr (0 to 13.5 mph) at 60 Hz, continuously variable, zero mph start-up
Belt Speed Acceleration/Deceleration: Approximately 0.8 km/sec (0.5 mph/sec)
Elevation Range: 0.0 to 25.0% grade, continuously variable
Elevation Range Increase/Decrease: 1.14%/sec
Manual Treadmill Controller (Optional): Functions: On, Off, Up, Down, Fast, Slow, Automatic Protocol Selection, Elapsed Time, Distance Traveled
Automatic Protocols: 15 exercise and 15 rehabilitation (includes Bruce, Naughton, Balke II, Ellestad, Low Performance)
Maximum Leakage Current: 100 µA, chassis to ground
Interface: RS-232 service port, 9600 baud (VT 100 or equivalent)
RS-422 serial port, 9600 baud (CASE 12/15, MAX-1, MAC VU, and CENTRA Stress Systems)
Physical Specifications
Weight: 181.4 kg (400 lb)
Walking Area: 45.7 cm x 152.4 cm (18 in x 60 in)
Floor Space Required: 73.7 cm x 195.6 cm (29 in x 77 in)
Walking Surface Height: 14.0 cm (5.5 in)
Handrail Height Above Walking Surface: Front: 101.6 cm (40 in)
Side: Maximum 88.9 cm (35 in) descending at 5° angle to 81.3 cm (32 in)
Power/Environmental Specifications
Power Requirements: 200 to 240 VAC, 60 Hz, single phase, 20 A, NEMA 6-20 R wall socket (dedicated circuit recommended)
Power Consumption: 1540 watts
Operating Conditions:
Ambient temperature: 10°C to 35°C (50°F to 95°F)
Relative humidity: 20% to 90%
Storage Conditions:
Temperature range: -18°C to 49°C (0°F to 120°F)
Relative humidity: 20% to 90%
