Tuttnauer 5075HSG D-Line Pre/Post Vacuum Autoclave

Item #: 5075HSG
  • Description
  • Specifications
  • Support Document

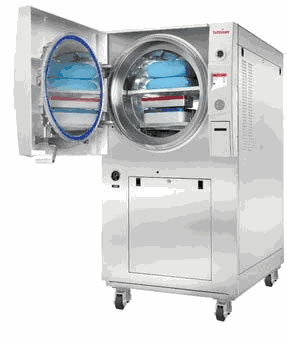

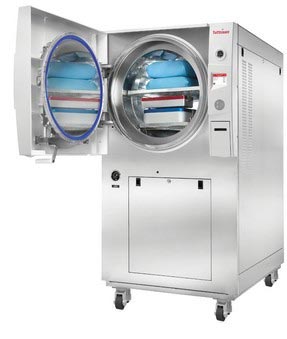

The Tuttnauer 5075HSG is a 160 liter fully featured stand-alone mobile pre & post vacuum autoclave. Many years of expertise with industrial sterilization technology have been packaged into the 5075HSG autoclave making it an ideal hospital grade autoclave. The 5075HSG is commonly used for fast cycles in small hospitals, medical centers and other mid-size healthcare facilities which need substantial loading capacity.

  • 160 liter chamber volume
  • Mounted on wheels for easy mobility
  • High throughput at a considerably low cost
  • Autoclave chamber is surrounded by coiled jacket
  • High volume water-ring vacuum pump
Compact

Narrow Design - fits through standard doorways Minimal Footprint - high capacity autoclave which does not require a lot of space

Green

Water Saving System - use only 5 liters of water a day (optional - WS model) Sleep Mode - allows user to set time to switch sterilizer to minimum energy consumption Low Rate Cycle - you can run your sterilizer when electrical power costs are low, like after work hours,by setting a delayed start time

Plug & Play

Independent Mode - no need to connect the autoclave to the building utilities for distilled water, tap water and drain (optional - WS model)

Easy to Move - Easy to Install

Mobility easy to move autoclave to new locations due to built-in swivel wheels Installation Made Easy connect to utilities with flexible piping Adjustable Floor Layout due to mobility and easy installation medical centers can easily adjust floor layout

Cost Effective Pricing

Efficient Chamber Design rounded chamber allows for economic pricing without compromising sterilization performance

Technical Specifications

  • Chamber Dimensions x L (mm): 500 x 750
  • Chamber Volume (Liters): 160
  • No. of Trays: 2
  • Tray Dimensions W x H x D (mm): Small: 310 x 21 x 698 Large: 310 x 21 x 698

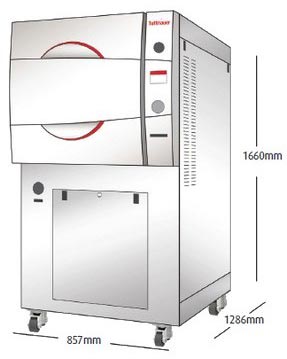

  • Overall Dimensions W x H x D (mm): 857 x 1660 x 1286
  • Autoclave Weight: 366 kg (kg)

Electrical Specifications

  • Voltage (Volts) / Frequency (Hz): 3 ph, 208/230/400/440/480 Volts 1ph, 230 Volts (requires switch box - optional) 50/60 Hz
  • Power (kW):18 kW
