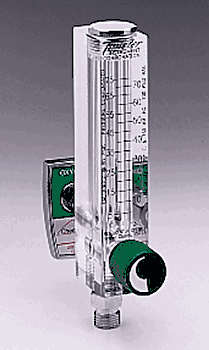

Timeter Classic O2 Flowmeter 75LPM

Every Timeter Classic Flowmeter is hand-crafted and engineered to the highest standards of performance and accuracy. The front scale, silk screened on the acrylic block, is checked for accuracy at critical points against a flowmeter reference standard. The silk-screened backscale on oxygen flowmeters is aligned mirror-perfect with the front. A renewable valve assembly allows you to make readjustments quickly with a slight turn of the valve stem.

All bottom outlets are DISS male oxygen. Flowmeters are calibrated for 50 psi sources.

Ordering Information:

3/4"FITTING 1/8" x 1/8": TB30

CHEMETRON® MALE: TZ03-B30

OXEQUIP® MALE: TZ01-B30

OHMEDA MALE: TZ04-B30

PURITAN BENNETT MALE: TZ02-B30

DISS FEMALE HANDTIGHT: TZ12-B30

DISS FEMALE HEX: TZ06-B30

DISS MALE: TZ10-B30

Warranty Statement Soft-Touch Timeter flowmeters are warranted under normal use against any manufacturing defects from the date Allied ships for a period of five years for any failure resulting from defective parts or faulty workmanship.
