Nellcor PM10N Portable SpO₂ Handheld Pulse Oximeter

  • Description
  • Specifications
  • Support Document
  • Accessories / Supplies

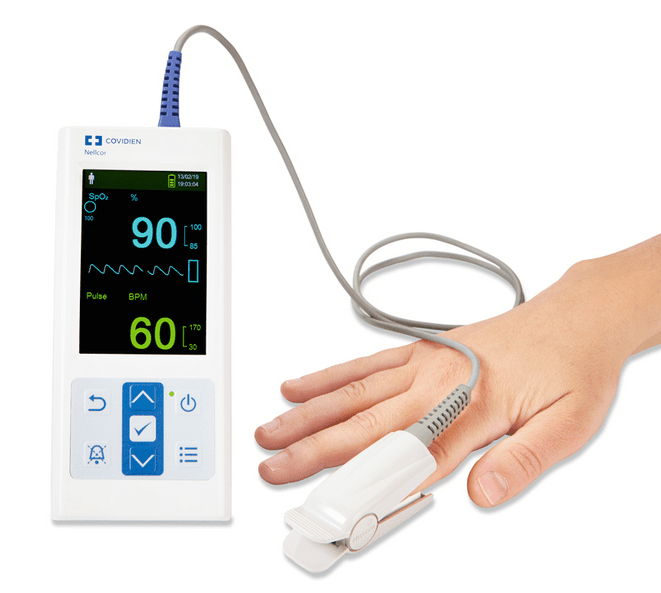

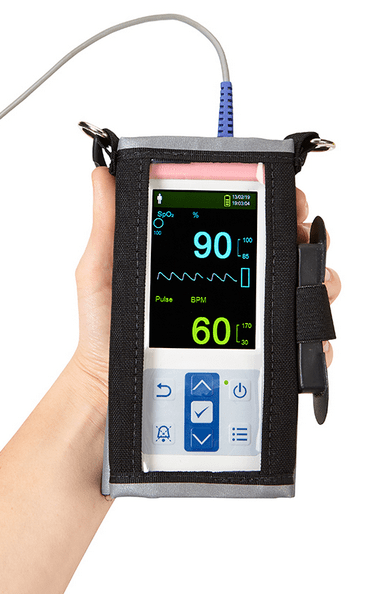

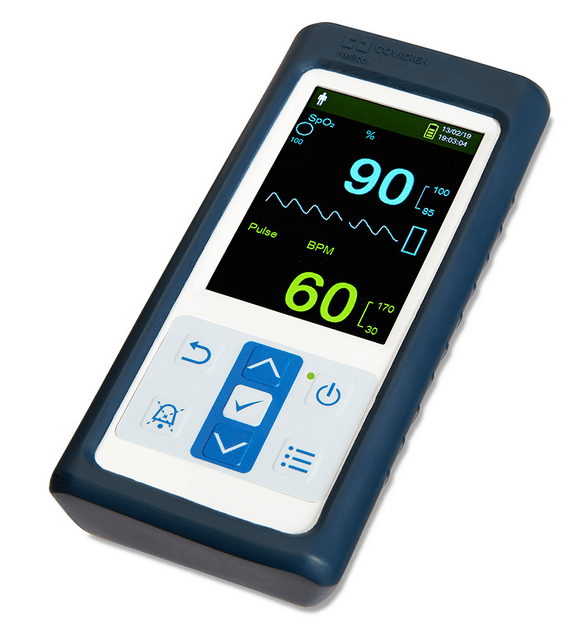

The Nellcor portable SpO₂ patient monitoring system, PM10N, is a convenient, handheld monitor that is ideal for spot-checks or continuous monitoring in various healthcare and home use settings. Its ergonomic shape and simple design make it intuitive to use and simple to operate. Wherever you need accurate, reliable SpO₂ measurements, count on the Nellcor portable SpO₂ pulse oximeter to meet the challenge.

The monitoring system includes a vivid 3-inch color LCD screen, and connectivity to analytic tools and patient management systems. It is compatible with the entire line of Nellcor sensors with OxiMax technology and offers a robust monitoring feature set including SpO₂, pulse rate, SatSeconds alarm management, pleth waveform, blip bar and tabular trend information.

The monitor incorporates Nellcor digital signal processing technology to deliver accurate, reliable SpO₂ and pulse rate values even during low perfusion and signal interference, including patient motion.

Nellcor Portable SpO₂ Patient Monitoring System, PM10N Features

▣ Small, lightweight, ergonomic handheld monitor for continuous and spot-check pulse oximetry monitoring

▣ Supports a robust data set, including real-time SpO₂ and PR values, SatSeconds alarm management, pleth waveform, blip bar and tabular trend data

▣ Supports standard and home-care modes for use in hospital, hospital-type facilities, transport, mobile environments and home-care environments

▣ Supports Sleep Study Mode, which enables the clinician to dim the LCD display and silence alarms to prevent disruption of patients’ sleep

▣ Nellcor advanced signal processing technology delivers reliable operation even in difficult monitoring conditions

▣ LoSat expanded accuracy range (60% to 100% SpO₂) when used with Nellcor adhesive sensors with OxiMax technology

▣ Compatible with the complete line of Nellcor single-patient-use, reusable and specialty sensors with OxiMax technology

▣ 80 hours of data storage capability

▣ Supports data export to an external personal computer for data analysis and printing functions
Weight: 274 g (0.604 lbs), including four batteries
Dimensions: 70 mm W x 156 mm H x 32 mm D
(2.76 in W x 6.14 in H x 1.26 in D)
Display:
Screen size: 88.9 mm (3.5 in), measured diagonally
Screen type: TFT LCD, white LED backlight, viewing cone of 60º and optimal viewing distance of 1 meter
Resolution: 320 x 480 pixels
Alarms:
Categories: Patient status and system status
Priorities: Low, medium and high
Notification: Audible and visual
Setting: Default, institutional and last setting
Alarm volume level: 49 to 89 dB
Alarm system delay: <10s
Range and Accuracy
Range Type: Range Values
Measurement Ranges:
SpO₂ saturation range: 1% to 100%
Pulse rate range: 20 to 250 beats per minute (bpm)
Perfusion range: 0.03% to 20%
Display sweep speed: 6.25 mm/sec
Measurement Accuracy:
Saturation:
Adult: 70% to 100% ±2 digits
Adult and neonate low sat: 60 to 80% ±3 digits
Neonate: 70 to 100% ±2 digits
Low perfusion: 70 to 100% ±2 digits
Adult and neonate with motion: 70 to 100% ±3 digits
Pulse rate:
Adult and neonate: 20 to 250 bpm ±3 digits
Low perfusion: 20 to 250 bpm ±3 digits
Adult and neonate with motion: 20 to 250 bpm ±5 digits
Electrical
Battery: Four new lithium batteries with 3,000 mAh will typically provide 20 hours of monitoring with no external communication, no audible alarm sound and at an ambient temperature of 25° C.
Type: Lithium AA
Voltage: 1.5V x 4
Environmental
Transport and Storage: Operating Conditions:
Temperature: -20 ºC to 70 ºC, 5 ºC to 40 ºC
(-4 ºF to 158 ºF) (41 ºF to 104 ºF)
Altitude: -390 to 5,574 m, -390 to 5,574 m
(-1,280 to 18,288 ft.) (-1,280 to 18,288 ft.)
Relative humidity: 15% to 95% non-condensing
Trends
Types: Tabular
Memory: Saves total 80 hours data events. Saves date and time, alarm conditions, pulse rate and SpO₂ measurements
Tabular format: One table for all parameters
Standards Compliance
IEC 60601-1:2005+A1:2012, EN 60601-1:2006/AC:2010
IEC 60601-1:1998 + A1:1991 +A2:1995, EN 60601-1:1990 +A11:1993 +A12:1993 +A13:1996
IEC 60601-1-2:2007, EN60601-1-2:2007
IEC 60601-1-6:2010, EN 60601-1-6:2010 +A1:2013
IEC 60601-1-8:2006, EN 60601-1-8:2006 +A1:2012
IEC 60601-1-11:2010, EN 60601-1-11:2010
ISO 9919:2005, EN ISO 9919:2009
ISO 80601-2-61:2011, EN ISO 80601-2-61:2011
CAN/CSA C22.2 No. 601.1 M90
UL 60601-1: 1st edition
802.11 B/G/N WLAN connectivity
Equipment Classifications
Type of protection against electric shock: Class I (internally powered)
Degree of protection against electric shock: Type BF - applied part
Mode of operation: Continuous
Electromagnetic compatibility: IEC 60601-1-2:2007
Ingress protection: IP22: Protected against foreign objects and moisture
Degree of safety: Not suitable for use in the presence of flammable anesthetics
Nellcor Adult Forehead SpO&#8322; Single-Patient Use Specialty Sensor
Item#: MAXFAST-ADULT
Adult >10 kg SINGLE-PATIENT USE SPECIALTY SENSOR Forehead SpO₂ Sensor Adult >10 kg For patients with low perfusion; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Pediatric Forehead SpO&#8322; Single-Patient Use Specialty Sensor
Item#: MAXFAST-PEDIATRIC
Pediatric >10 kg SINGLE-PATIENT USE SPECIALTY SENSOR Headband SpO₂ Sensor For patients with low perfusion; suitable for long-term monitoring. CASE/24
Nellcor Adult SpO&#8322; Sensor Nonadhesive
Item#: SC-A
Adult >40 kg Adult SpO2 Sensor, Nonadhesive For patients with fragile skin; suitable for long-term monitoring. CASE/24
Nellcor Neonatal SpO&#8322; Sensor Nonadhesive
Item#: SC-NEO
Neonatal 1.5-5 kg Neonatal SpO₂ Sensor, Nonadhesive For patients with fragile skin; suitable for long-term monitoring. CASE/24
Nellcor Preemie SpO&#8322; Sensor Nonadhesive
Item#: SC-PR
Preterm Infant <1.5 kg Preterm Infant SpO₂ Sensor, Nonadhesive. For patients with fragile skin; suitable for long-term monitoring. CASE/24
Nellcor Adult Adhesive SpO&#8322; Sensors
Item#: MAXA-MAXAL
Adult >30 kg Adult Adhesive SpO₂ Sensor Comfortable, form-fitting sensors; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Neonatal/Adult Adhesive SpO&#8322; Sensors
Item#: MAXN
Neonatal/Adult <3 kg or >40 kg Neonatal/Adult Adhesive SpO₂ Sensor. Comfortable, form-fitting sensors; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Infant Adhesive SpO&#8322; Sensor
Item#: MAXI
Infant 3-20 kg Infant Adhesive SpO₂ Sensor Comfortable, form-fitting sensors; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Pediatric Adhesive SpO&#8322; Sensor
Item#: MAXP
Pediatric 10-50 kg, form-fitting sensors; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Adult Nasal Adhesive SpO&#8322; Sensors
Item#: MAXR
Adult Nasal >50 kg Adult Nasal Adhesive SpO₂ Sensor Comfortable, form-fitting sensors; suitable for long-term monitoring. CASE/24
Nellcor Adult Reusable SpO&#8322; Sensors
Item#: DS100A-1
Adult >40 kg BOX/1 SENSOR
Nellcor Neonatal/Adult Reusable SpO&#8322; Sensors with Wraps
Item#: OXI-A-N
Adult/Neonatal <3 kg or >40 kg. CASE/24 ADHESIVE WRAPS, 1/PKG SENSOR CABLE
Nellcor Pediatric/Infant Reusable SpO&#8322; Sensors with Wraps
Item#: OXI-P-I
Pediatric/Infant 3-40 kg CASE/24 ADHESIVE WRAPS, 1/PKG SENSOR CABLE
Nellcor Multisite Reusable Multisite SpO&#8322; Sensors
Item#: D-YS
Multisite >1 kg 1/PKG SENSORS/CLIPS, 1 PAIR/SLEEVES
Nellcor Ear Clip Reusable Multisite SpO&#8322; Sensors
Item#: D-YSE
Use with SpO₂ sensor >30 kg 1/PKG SENSORS/CLIPS, 1 PAIR/SLEEVES
Nellcor Pediatric Clip Reusable Multisite SpO&#8322; Sensors
Item#: D-YSPD
Use with SpO₂ sensor 3-40 kg 1/PKG SENSORS/CLIPS, 1 PAIR/SLEEVES
Nellcor Sensor Wrap For OXI-P/I, OXI-A/N, D-YS
Item#: POSEY
For OXI-P/I, OXI-A/N, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Adhesive Sensor Wrap For OXI-A/N, D-YS
Item#: ADH-A-N
For OXI-A/N, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Adhesive Sensor Wrap For OXI-P/I, D-YS
Item#:
For OXI-P/I, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Foam Sensor Wrap For OXI-A/N, D-YS
Item#: FOAM-A-N
For OXI-A/N, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Foam Sensor Wrap For OXI-P/I, D-YS
Item#: FOAM-P-I
For OXI-P/I, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Sensor Extension Cable 4'
Item#: DEC-4
For Nellcor™ pulse oximeters with and without OxiMax™ technology.
Nellcor Sensor Extension Cable 8'
Item#: DEC-8
For Nellcor™ pulse oximeters with and without OxiMax™ technology
 Nellcor Patient Interface Cable 10'
Item#: MC-10
For pulse oximeters without OxiMax technology
Nellcor Patient Interface Cable with OxiMax 10'
Item#: DOC-10
For Nellcor pulse oximeters with OxiMax technology only
