Nellcor PM1000N Bedside Respiratory Pulse Oximeter

Item #: PM1000N
  • Description
  • Specifications
  • Support Document
  • Accessories / Supplies

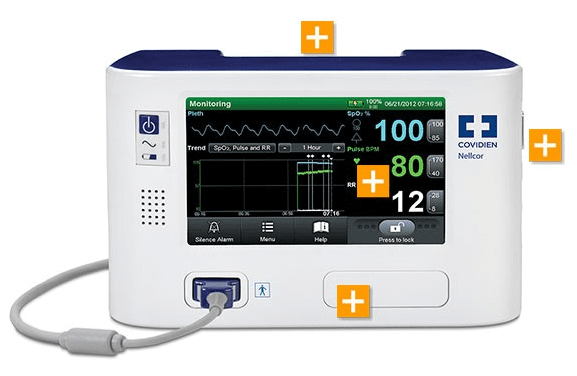

Nellcor PM1000N Bedside Respiratory Patient Monitoring System

The Nellcor Bedside Respiratory Patient Monitoring System, PM1000N incorporates the latest Nellcor digital signal processing and cardiac-based technology for accurate, reliable readings. Because Nellcor pulse oximetry is closely tied to patient physiology, it drives consistent performance during various challenging conditions, such as patient movement, noise, and low perfusion which can impede the assessment of patient respiratory status. The patient monitoring system is also cleared as a motion-­tolerant bedside pulse oximeter that is compliant with ISO 80601--­2--­61.

With its intuitive, easy-to-read, graphical user interface and state-of-the-art color touch screen, this monitoring system provides clinicians with easy access to the critical information they need for patient care. The system provides continuous SpO₂, pulse rate and respiration rate monitoring, SatSeconds alarm management, and Saturation Pattern Detection (SPD) alert, so clinicians may detect respiratory complications earlier and, therefore, intervene sooner.

▣ Modular software, expandable parameters and easy upgrades to help ensure long­term functionality

▣ State-of-the-art, lightweight and versatile design

▣ Multiple connectivity options

▣ Includes Nellcor Respiration Rate Technology which delivers oxygen saturation (SpO₂), pulse rate, and respiration rate through a single finger sensor.

▣ Nellcor pulse oximetry with Oximax technology has accuracy claims of +/- 2% in the standard ranges of 70% to 100% saturation, and best-in-class LoSat accuracy claims of +/- 3% of 60% to 80%, enabling clinicians to accurately assess patients’ oxygen saturation.

▣ The speed of measuring oxygenation and displaying the value has been shown to be clinically important. In two published papers, clinical studies employed different sequences for sensor application and connection to the patient; Nellcor OxiMax technology responded fastest to changes in neonate patients.

▣ Covidien is the first and only company to receive FDA clearance for a motion-tolerant pulse oximeter portfolio that is also compliant with ISO 80601-2-61. Motion tolerant pulse oximetry is critical for ensuring patient safety because patient movement can thwart accurate readings and delay diagnosis of serious respiratory compromise.

Performance
Measurement Range:
SpO₂: 1% to 100%
Pulse rate: 20 to 250 beats per minute (bpm)
Pulse amplitude: 0.03% to 20Accuracy
Accuracy
Saturation:
Adult: 70% to 100% ±2 digits
Adult and neonate low sat: 60 to 80% ±3 digits
Neonate: 70 to 100% ±2 digits
Low perfusion: 70 to 100% ±2 digits
Adult and neonate with motion: 70 to 100% ±3 digits
Pulse rate
Adult and neonate: 20 to 250 bpm ±3 digits
Low perfusion: 20 to 250 bpm ±3 digits
Adult and neonate with motion: 20 to 250 bpm ±5 digits
Electrical
Instrument
Power requirements: 80-263 VAC, 47/63 Hz, 30 VA power
Fuse rating: Slow blow 1.5A 250V
Battery
Type: Li-Ion
Battery capacity: 6 hours under nominal load conditions
Environmental
Operating Temperature
Instrument:5°C to 40°C (41°F to 104°F)
Transport/Storage Temperature (in shipping carton): -40°C to 70°C (-40°F to 160°F)
Operating Humidity: 15% to 95% noncondensing
Operating Altitude: -304.8 m to 4572 m (-1000 ft to 15,000 ft)
Physical Characteristics
Weight: 3.4kg (7.5 lbs)
Size: 254 H x 165 W x 127 D (mm)
10 H x 6.5 W x 5 D (in)
Equipment Compliance:
Standards Compliance
EN ISO 80601-2-61 2011
EN IEC 60601-1 2005
EN IEC 60601-1-2 2007.03.01 3rd edition
EN IEC 60601-1-2 2nd edition
IEC 60601-1-8: 2006 and EN 60601-1-8:2007
EN IEC 60601-1-9 2007
ISO 10993-1: 2003
CAN/CSA C22.2 No. 60601-1:08
WEEE 2002/96/EC
RoHS directive 2011/65/EU
Equipment Classifications
Type of protection against electric shock: Class 1 (internally powered)
Degree of protection against electric shock: Type BF - Applied part
Mode of operation: Continuous
Electromagnetic compatibility: IEC 60601-1-2:2007 3rd edition
Liquid ingress: IPX1
Degree of safety: Not suitable for use in the presence of flammable anesthetics
Output
Stores up to 48 hours of trend data readings that can be downloaded for analysis and archive
Capability to connect to both wired and wireless LAN networks
Capability to connect to Philips Vuelink Module and Nurse Call via wired serial port
Capability to download trend data to PC
Display/Indicators
Pulse Amplitude Indicator (16 segments)
Plethysmographic waveform
Real time numbers
Real time trend data
Multiple alarm conditions
Up to 3 alarm conditions simultaneously
SatSeconds Alarm Management
OxiMax SPD Alert
Battery Charging
Clock
Event Marker
Histogram Display
Clinical Log
Neonatal Default Mode
Alarms
Audible and visual alarms for high/low saturation and pulse rate
SatSeconds Alarm Management settings: 10,25,50 and 100, or OFF
Saturation Pattern Detection sensitivity setting: 1,2,3 or OFF
Pulse Rate Delay settings: 5, 10 or OFF
Audible and visual warning indicators for low battery and sensor off
Audible and visual sensor disconnect alarms
Communication failure visual alarm
Backup audible alarm
Variable pitch beep tone for point-by-point changes in SpO2
User configurable sensor alarm prioritization
Optional Accessories
GCX mounting adapter
Interface cable
Nellcor Adult Forehead SpO₂ Single-Patient Use Specialty Sensor
Item#: MAXFAST-ADULT
Adult >10 kg SINGLE-PATIENT USE SPECIALTY SENSOR Forehead SpO₂ Sensor Adult >10 kg For patients with low perfusion; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Pediatric Forehead SpO₂ Single-Patient Use Specialty Sensor
Item#: MAXFAST-PEDIATRIC
Pediatric >10 kg SINGLE-PATIENT USE SPECIALTY SENSOR Headband SpO₂ Sensor For patients with low perfusion; suitable for long-term monitoring. CASE/24
Nellcor Adult SpO₂ Sensor Nonadhesive
Item#: SC-A
Adult >40 kg Adult SpO2 Sensor, Nonadhesive For patients with fragile skin; suitable for long-term monitoring. CASE/24
Nellcor Neonatal SpO₂ Sensor Nonadhesive
Item#: SC-NEO
Neonatal 1.5-5 kg Neonatal SpO₂ Sensor, Nonadhesive For patients with fragile skin; suitable for long-term monitoring. CASE/24
Nellcor Preemie SpO₂ Sensor Nonadhesive
Item#: SC-PR
Preterm Infant <1.5 kg Preterm Infant SpO₂ Sensor, Nonadhesive. For patients with fragile skin; suitable for long-term monitoring. CASE/24
Nellcor Adult Adhesive SpO&#8322; Sensors
Item#: MAXA-MAXAL
Adult >30 kg Adult Adhesive SpO₂ Sensor Comfortable, form-fitting sensors; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Neonatal/Adult Adhesive SpO&#8322; Sensors
Item#: MAXN
Neonatal/Adult <3 kg or >40 kg Neonatal/Adult Adhesive SpO₂ Sensor. Comfortable, form-fitting sensors; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Infant Adhesive SpO&#8322; Sensor
Item#: MAXI
Infant 3-20 kg Infant Adhesive SpO₂ Sensor Comfortable, form-fitting sensors; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Pediatric Adhesive SpO&#8322; Sensor
Item#: MAXP
Pediatric 10-50 kg, form-fitting sensors; suitable for long-term monitoring. SENSORS WITH LOW SATURATION EXPANDED ACCURACY RANGE. CASE/24
Nellcor Adult Nasal Adhesive SpO&#8322; Sensors
Item#: MAXR
Adult Nasal >50 kg Adult Nasal Adhesive SpO₂ Sensor Comfortable, form-fitting sensors; suitable for long-term monitoring. CASE/24
Nellcor Adult Reusable SpO&#8322; Sensors
Item#: DS100A-1
Adult >40 kg BOX/1 SENSOR
Nellcor Neonatal/Adult Reusable SpO&#8322; Sensors with Wraps
Item#: OXI-A-N
Adult/Neonatal <3 kg or >40 kg. CASE/24 ADHESIVE WRAPS, 1/PKG SENSOR CABLE
Nellcor Pediatric/Infant Reusable SpO&#8322; Sensors with Wraps
Item#: OXI-P-I
Pediatric/Infant 3-40 kg CASE/24 ADHESIVE WRAPS, 1/PKG SENSOR CABLE
Nellcor Multisite Reusable Multisite SpO&#8322; Sensors
Item#: D-YS
Multisite >1 kg 1/PKG SENSORS/CLIPS, 1 PAIR/SLEEVES
Nellcor Ear Clip Reusable Multisite SpO&#8322; Sensors
Item#: D-YSE
Use with SpO₂ sensor >30 kg 1/PKG SENSORS/CLIPS, 1 PAIR/SLEEVES
Nellcor Pediatric Clip Reusable Multisite SpO&#8322; Sensors
Item#: D-YSPD
Use with SpO₂ sensor 3-40 kg 1/PKG SENSORS/CLIPS, 1 PAIR/SLEEVES
Nellcor Sensor Wrap For OXI-P/I, OXI-A/N, D-YS
Item#: POSEY
For OXI-P/I, OXI-A/N, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Adhesive Sensor Wrap For OXI-A/N, D-YS
Item#: ADH-A-N
For OXI-A/N, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Adhesive Sensor Wrap For OXI-P/I, D-YS
Item#:
For OXI-P/I, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Foam Sensor Wrap For OXI-A/N, D-YS
Item#: FOAM-A-N
For OXI-A/N, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Foam Sensor Wrap For OXI-P/I, D-YS
Item#: FOAM-P-I
For OXI-P/I, D-YS, CASE/12 POSEY, 100/PKG OTHERS
Nellcor Sensor Extension Cable 4'
Item#: DEC-4
For Nellcor™ pulse oximeters with and without OxiMax™ technology.
Nellcor Sensor Extension Cable 8'
Item#: DEC-8
For Nellcor™ pulse oximeters with and without OxiMax™ technology
 Nellcor Patient Interface Cable 10'
Item#: MC-10
For pulse oximeters without OxiMax technology
Nellcor Patient Interface Cable with OxiMax 10'
Item#: DOC-10
For Nellcor pulse oximeters with OxiMax technology only
