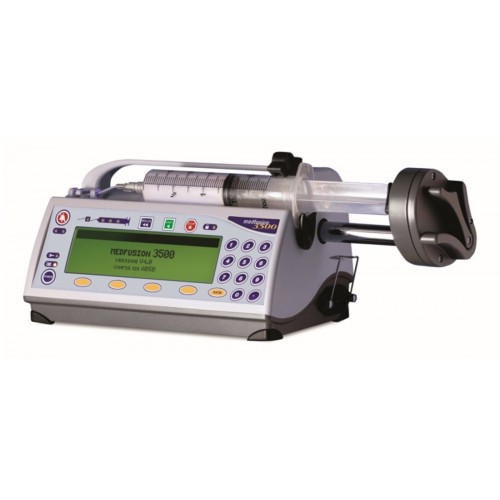

Medex Medfusion 3500 Syringe Pump
View Complete SpecificationsQuick Specs!
The Medex Medfusion 3500 is easy to use, MRI Compatible, Up to 10 hours internal battery capacity, Accepts all syringe sizes 1cc - 60cc. Mounts easily to an IV pole, an infant’s isolet or radiant warmer and rotation capabilities.
Product Specifications
Dimensions: 10.5"W x 5.1"H x 5.5"D
Weight: 3.8 lbs without pole clamp
Accuracy: ±2% excluding syringe variations
Flow Rate Range: 0.01 ml/hr to 1130 ml/hr depending on syringe size
Delivery Modes: ml/hr, body weight, mass, volume over…
The Medex Medfusion 3500 is easy to use, MRI Compatible, Up to 10 hours internal battery capacity, Accepts all syringe sizes 1cc - 60cc. Mounts easily to an IV pole, an infant’s isolet or radiant warmer and rotation capabilities.
Product Specifications
Dimensions: 10.5"W x 5.1"H x 5.5"D
Weight: 3.8 lbs without pole clamp
Accuracy: ±2% excluding syringe variations
Flow Rate Range: 0.01 ml/hr to 1130 ml/hr depending on syringe size
Delivery Modes: ml/hr, body weight, mass, volume over time, customer dilution, and intermittent
Delivery Options: Loading Dose, Bolus Dose, Standby, Volume Limit, and KVO Rate
Power: 100 to 240 VAC, 50/60 Hz, 30VA
Internal rechargeable battery
Optional external DC Input, 6-14 VDC, 7 Watts
Safety Class II - Type CF
Internal Battery Capacity: 10 hours at 5.0 ml/hr with 60 ml syringe
User Defined Delivery Libraries: Four Libraries with 16 profiles per library
MR Tested: May be used in MRI Rooms with static magnetic fields up to 150 gauss
Options: PharmGuard™ Error Reduction Software for programmable limits
