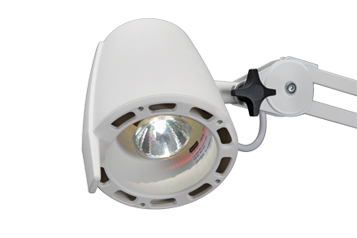

Surgical Equipment OR Lights | Procedure Lights Burton LE-35 Task - Examination LightsBurton LE-35 Task - Examination Lights
View Complete SpecificationsQuick Specs!
Introducing Burton’s NEW AIM LED, the most exciting revolution in diagnostic examination lighting. The AIM LED uses the latest advances in state-of-the-art lighting technology to achieve incredible performance and unsurpassed value and energy efficiency. The AIM LED provides 10% more illumination (45,000 Lux at 1 meter) than even the high performing AIM-50®. A 92 CRI rating produces very accurate color visibility which is important for an accurate diagnosis. With 10 times greater (20,000 hours) lamp life than traditional light source products, you will save more than …
Introducing Burton’s NEW AIM LED, the most exciting revolution in diagnostic examination lighting. The AIM LED uses the latest advances in state-of-the-art lighting technology to achieve incredible performance and unsurpassed value and energy efficiency. The AIM LED provides 10% more illumination (45,000 Lux at 1 meter) than even the high performing AIM-50®. A 92 CRI rating produces very accurate color visibility which is important for an accurate diagnosis. With 10 times greater (20,000 hours) lamp life than traditional light source products, you will save more than $1,000 in bulb replacements alone. Additionally, the AIM LED uses 55% less energy.
Technical Specifications
• Illuminance:* 45,000 Lux (4,200 FC) at 1 meter (39.37 in.)
• Color temperature: 4300 K
• CRI (Color Rendering Index): 92
• Diameter of Lighthead: 51 cm (20 in.)
• Light Field Diameter: 33 cm - 38 cm (13 in. - 15 in.)
• Depth of Illumination: 137 cm (54 in.)
• Focusing: Adjustable by rotating center handle
• Number of LED Modules: 3
• Light Sources (LED): Light Emitting Diodes (LED)
• Rated Life of LED Lamp: 20,000 hours
• Swivel Radius of Lamp Housing-Ceiling Mounted:* * 160 cm (63 in.) max.
• Height Movement of Lamp Housing-Ceiling Mounted: 104 cm (41 in.) vertical movement
• Minimum Ceiling Height/Maximum Ceiling Height: 2440 mm/3660 mm (8 ft./12 ft.)
• Power: 84 Watts
• Total Weight: Floor version 15.9 kg (35 lbs.), single ceiling version 15.4 kg (34 lbs.)
• Seismic Calculations Available: Yes
• 5-year limited warranty
*The optical data are at nominal values based on measurements done according to the UL/IEC performance standards at 120V
**With extension arm and spring arm extended
Certifications/Approvals
• UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41
• MDD 93/42 EEC (CE Approved)
• CAN/CSA C22.2 601-1 M90
Option
Select Floor Stand or Table Mount
LE-35 RANGE OF MOTION AND GENERAL DIMENSIONS
Table Mount Model
Floorstand Model
