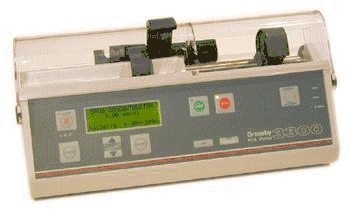

Infusion Devices Syringe Pumps Graseby Medical Model 3300 Syringe PumpGraseby Medical Model 3300 Syringe Pump
View Complete SpecificationsQuick Specs!
The Graseby Medical Model 3300 Syringe Pump is being used world wide for a variety of strong and weak analgesics for both adults and children. A range of syringe brands may be used and a variety of external devices can be connected via the RS232 port. It is safe, easy to use and effective for all types of PCA applications.
Specifications
- Power Supply: 220-240 V or 100-120 V, 50/60 Hz
- Battery type: Sealed lead acid (Cyclon)
- Battery Charge: 8 hours when fully charged and under
normal operating conditions.
Syringe Types:
BD Plastipak…
The Graseby Medical Model 3300 Syringe Pump is being used world wide for a variety of strong and weak analgesics for both adults and children. A range of syringe brands may be used and a variety of external devices can be connected via the RS232 port. It is safe, easy to use and effective for all types of PCA applications.
Specifications
- Power Supply: 220-240 V or 100-120 V, 50/60 Hz
- Battery type: Sealed lead acid (Cyclon)
- Battery Charge: 8 hours when fully charged and under
normal operating conditions.
Syringe Types:
BD Plastipak 20, 30, 50/60 ml
Braun Omnifix 20, 30, 50/60 ml
Braun Perfusor 50 ml (optional)
Monojet 20, 30/35 50/60 ml
Terumo 20, 30/35 50/60 ml
Fresenius Injectomat 50 ml
DBL Rapiject 50 ml (prefilled)
- Concentration: 1ug/ml – 99.5 mg/ml
Loading dose:
0 ug – 99.5 mg
PCA (Bolus) dose:
1ug – 99.5 mg
- Dose duration: STAT or 1 – 15 minutes
- Lock-out period: 0 – 360 minutes
- Dose limit range: 1 – 8 hours
- Continuous infusion: 0 –20 ml/hr (with bolus)
- Weight: 8 lbs including Batteries and poleclamp
- Dimensions: 13 inches x 8 inches x 5 inches
- Operating temperatures: 42º-105ºF (IEC 601-1)
- Drive Accuracy: +/- 2%
- Electrical safety: CSA, UL, Class II, Type CF Drip-proof
Design Standards:
BS 5724 Part 1
IEC 601 Part 1
VFG 1046/1984
- Printer/Monitor port: D-type 9 way connector (RS232)
Language versions: English, French, German, Italian, Dutch and Spanish.
